Optimized operating software

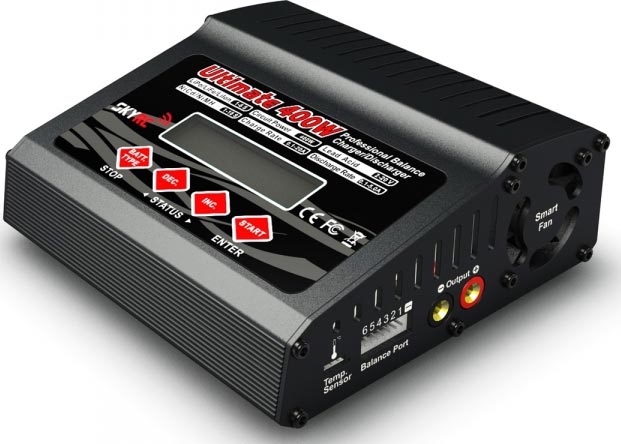

Ultimate 400W features AUTO function sets the charging and discharging current automatically protecting Lithium batteries during the charge/discharge processor. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way communication, to achieve the maximum safety and minimize trouble. All the settings can be user configured
Internal independent lithium battery balancer
Ultimate 400W employs an individual-cell-voltage balancer. It is not necessary to connect an external
balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, Ultimate 400W can monitor and balance each cell of the battery
individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
Ultimate 400W is adaptable to various types of lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.
Fast and storage mode of lithium battery
Charge programs for Lithium battery vary. Fast charging reduces the charge time, but store state controls the final voltage of battery battery, so as to store for a long time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated
automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging
capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
Temperature threshold
The battery internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. This function is available by connecting the optional temperature probe part number SKY600040.
Processing time limit
You can also limit the maximum process time to avoid any possible defect.
Data store/load
For user’s convenience, it can store maximum 10 data of different batteries. You can establish
the data contains program setting of the battery to charge or discharge. These data can be called
back at any time you need and the process can be executed without program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery
refreshing and balancing to stimulate the battery's activity.
