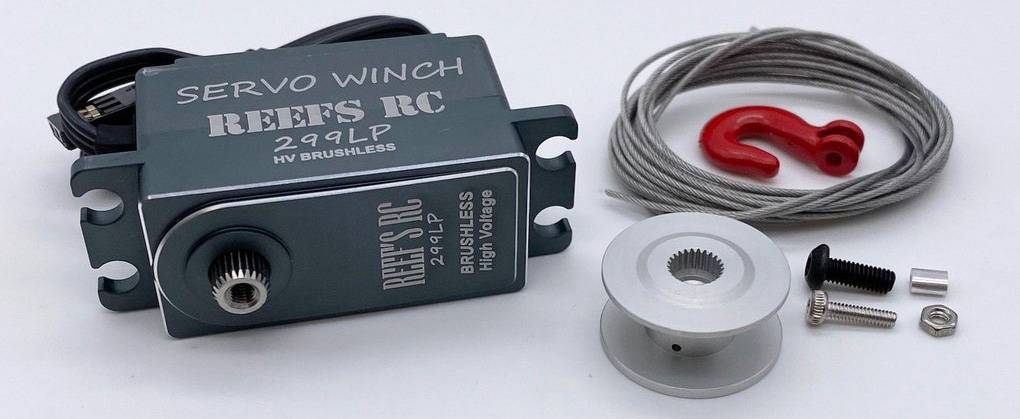

Winch 299 Low Profile w/Built in Controller
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car & Truck Accessories, Scale Truck & Crawler
But only from... REEFS R/C
All items from... REEFS R/C
But only from... REEFS R/C
All items from... REEFS R/C
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing
Bearing/Bushing:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
1.60 in
Length:
.79 in
Width:
1.00 in
Height:
2.0 oz
Weight:
Steel Gears
Geartrain:
Brushless
Motor Type:
4.8 - 8.4 V
Voltage Range:
280 oz-in
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
300 oz-in
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
320 oz-in
Torque @ 8.4V:
0.057 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
|
PRODUCT RESOURCES
SEHREEFS59
