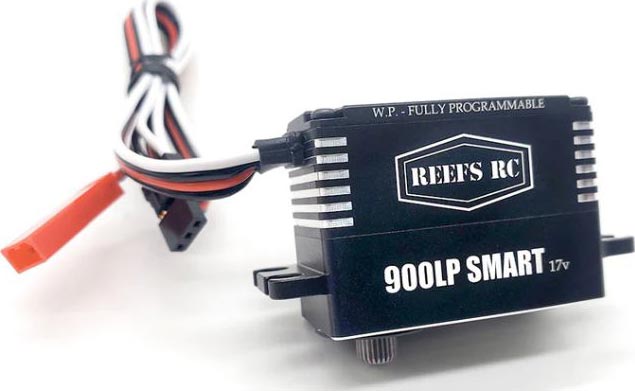

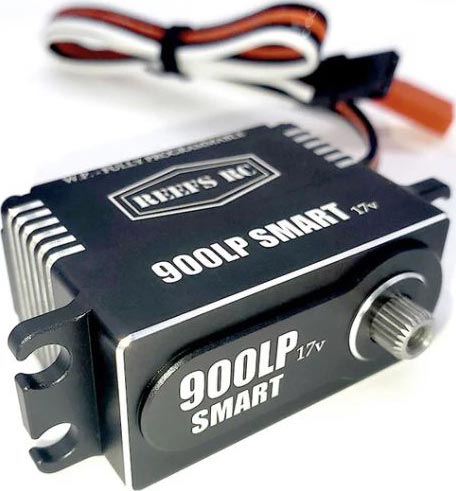

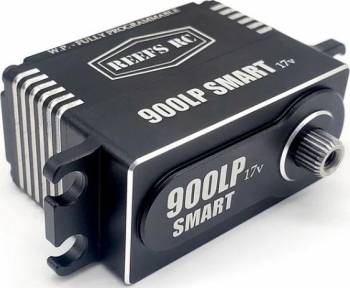

900LP Smart 17V Brushless Direct Power 4S Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|||||||||||||
SPECIFICATIONS
Low Profile
Size Class:
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
48 mm
Length:
20.2 mm
Width:
29.5 mm
Height:
66 g
Weight:
Steel
Geartrain:
4-Pole Brushless
Motor Type:
10 - 17 v
Voltage Range:
51.1 kg-cm (710 oz-in)
Torque @ 12.6V:
0.10 sec/60°
Speed @ 12.6V:
58.3 kg-cm (810 oz-in)
Torque @ 14.4V:
0.09 sec/60°
Speed @ 14.4V:
66.3 kg-cm (920 oz-in)
Torque @ 16.8V:
0.08 sec/60°
Speed @ 16.8V:
FEATURES
The 900LP SMART brushless servo really has it all! Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!
This is a high torque, high-speed brushless servo that can also function as a winch. It comes configured as a servo but can be converted to a winch using the REEFS LINK (sold separately) It features a built-in preprogrammed winch controller and is designed with submarine waterproofing, utilizing 7-point seals and a gray heat sink. Constructed with military-grade materials, it incorporates a magnetic angle sensor.
