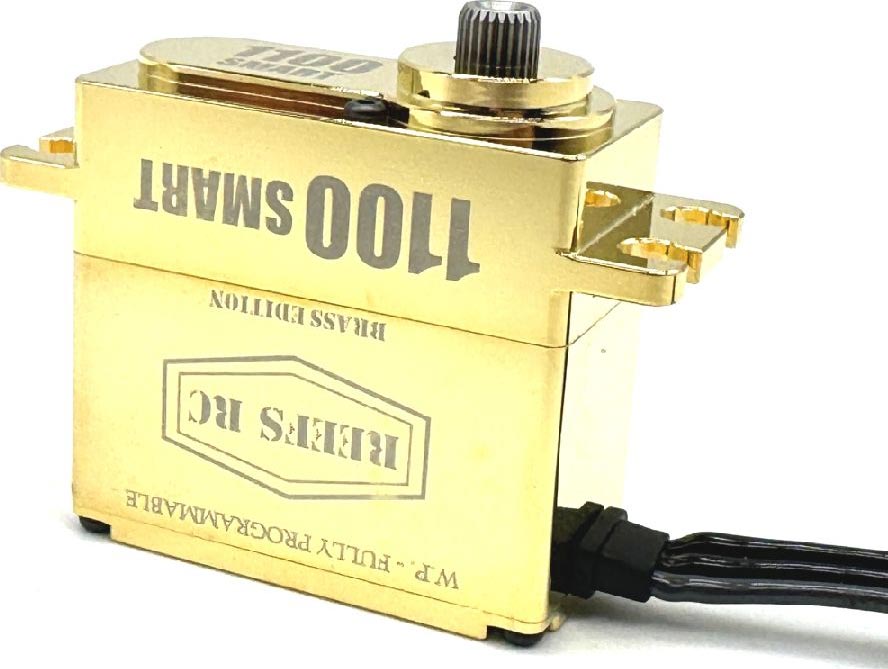

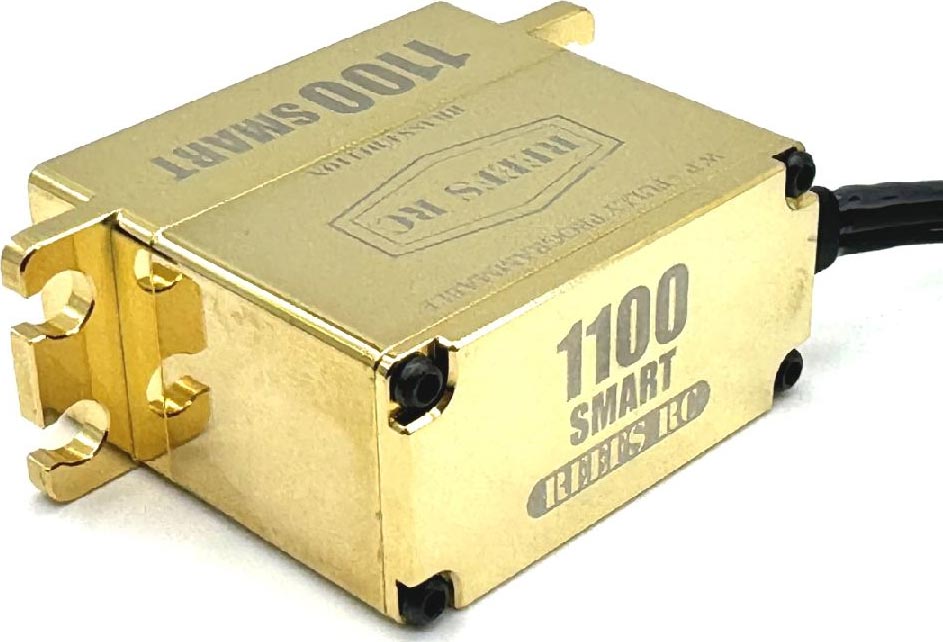

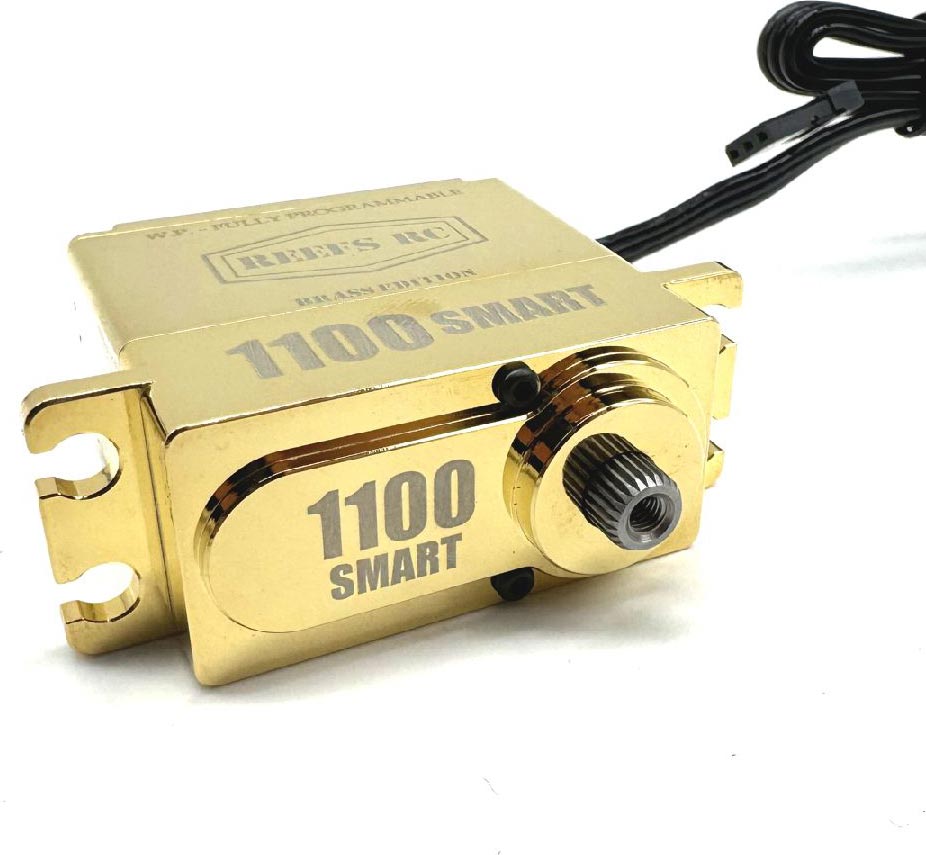

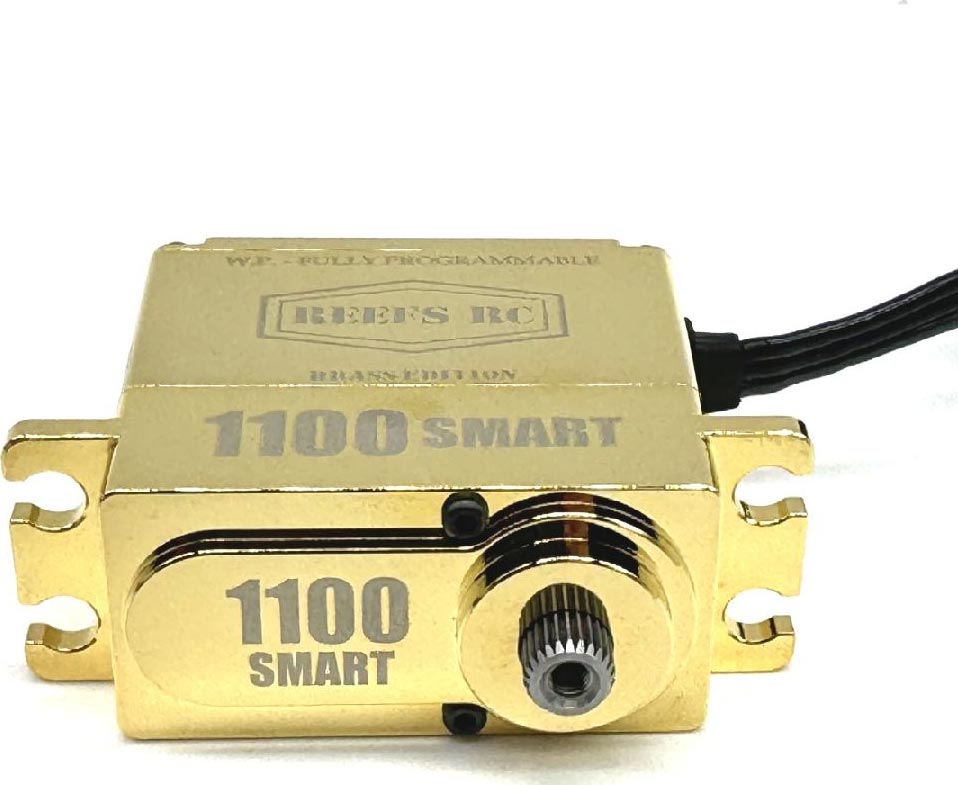

1100 Smart Brass Edition Servo/Winch
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

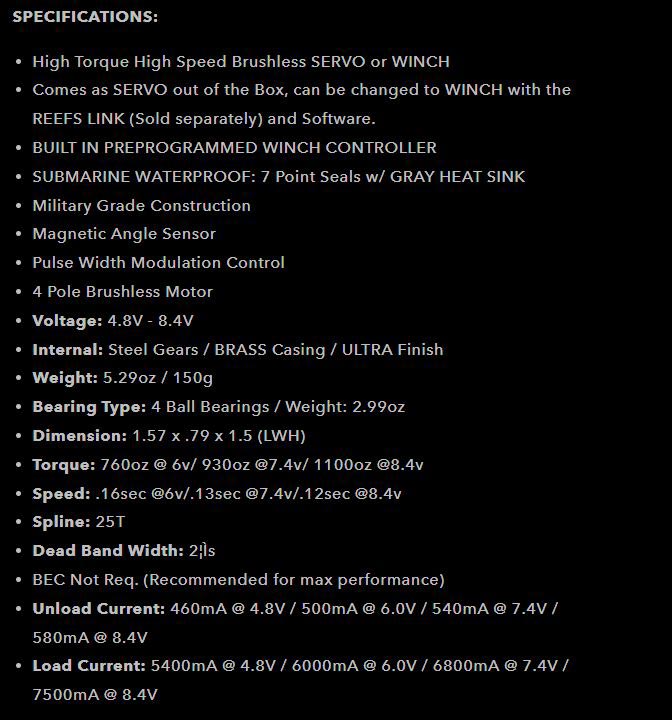

SPECIFICATIONS
Four Ball Bearings
Bearing/Bushing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38.1 mm
Height:
85 g
Weight:
Steel
Geartrain:
4 Pole Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
54.7 kg-cm (760 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
67 Kg-cm (930 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
79.2 kg-cm (1100 oz-in)
Torque @ 8.4V:
0.12 sec/60°
Speed @ 8.4V:
FEATURES
This is a high torque, high-speed brushless servo that can also function as a winch. It comes configured as a servo but can be converted to a winch using the REEFS LINK (sold separately) It features a built-in preprogrammed winch controller and is designed with submarine waterproofing, utilizing 7-point seals and a gray heat sink. Constructed with military-grade materials, it incorporates a magnetic angle sensor.
