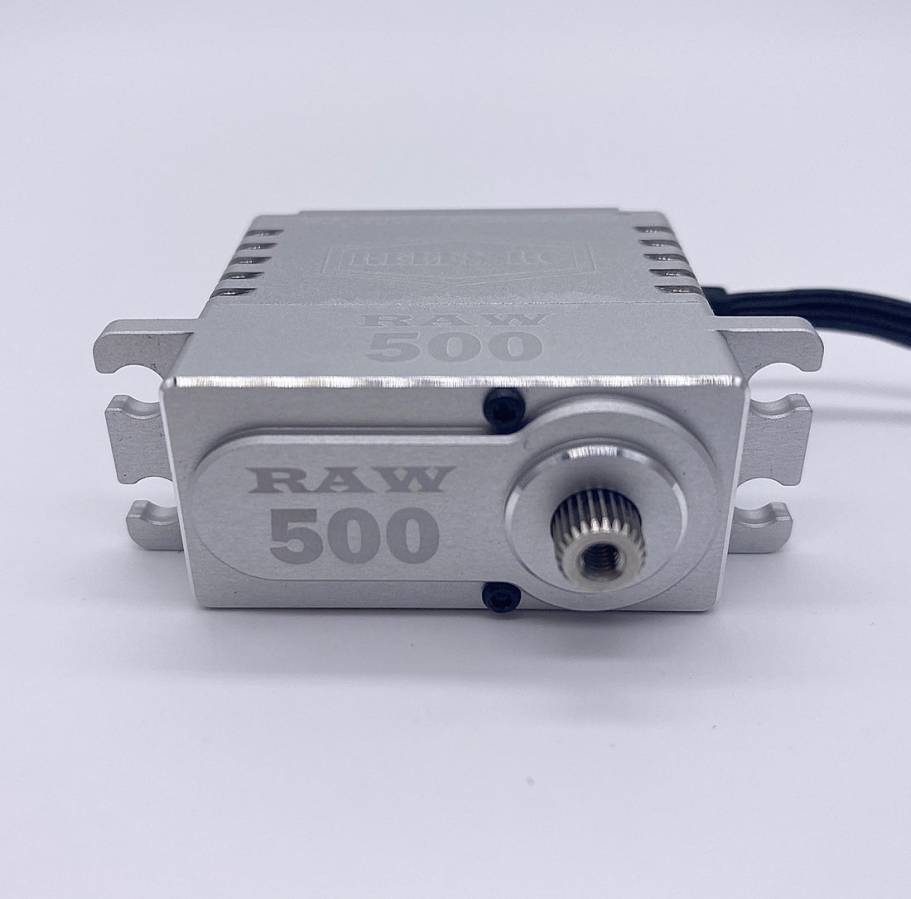

Servo RAW 500 Brass Fully Programmable Waterproof Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|||||||||||||
SPECIFICATIONS
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
39.9 mm
Length:
20 mm
Width:
38.1 mm
Height:
145.2 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
32.4 kg-cm (450 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
36.0 kg-cm (500 oz-in)
Torque @ 7.4V:
0.095 sec/60°
Speed @ 7.4V:
40.68 kg-cm (565 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software
- REEFS LINK required for Programming
High Torque High Speed Brushless Servo
click image to enlarge

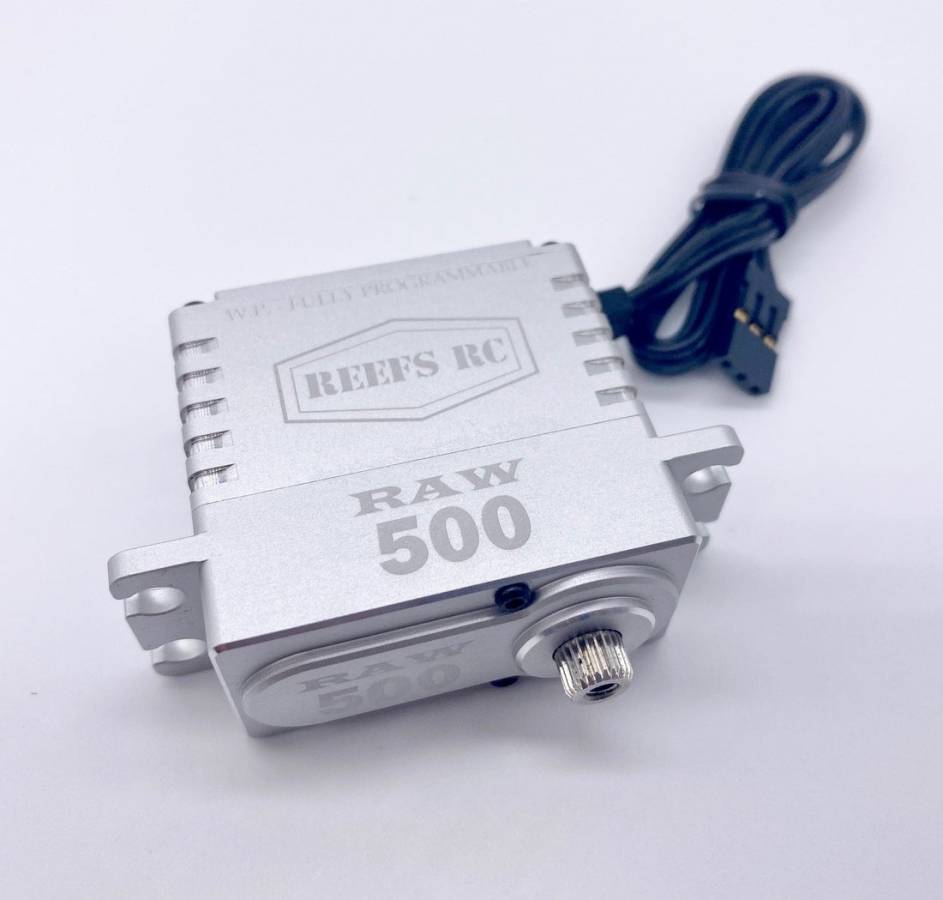

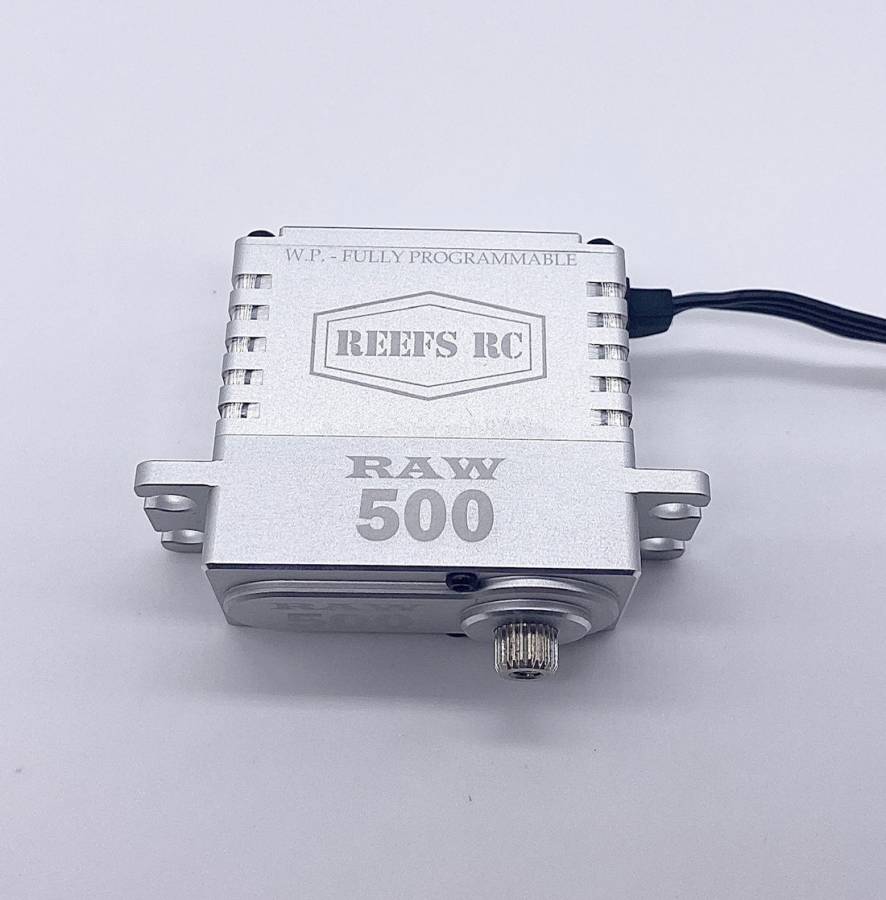

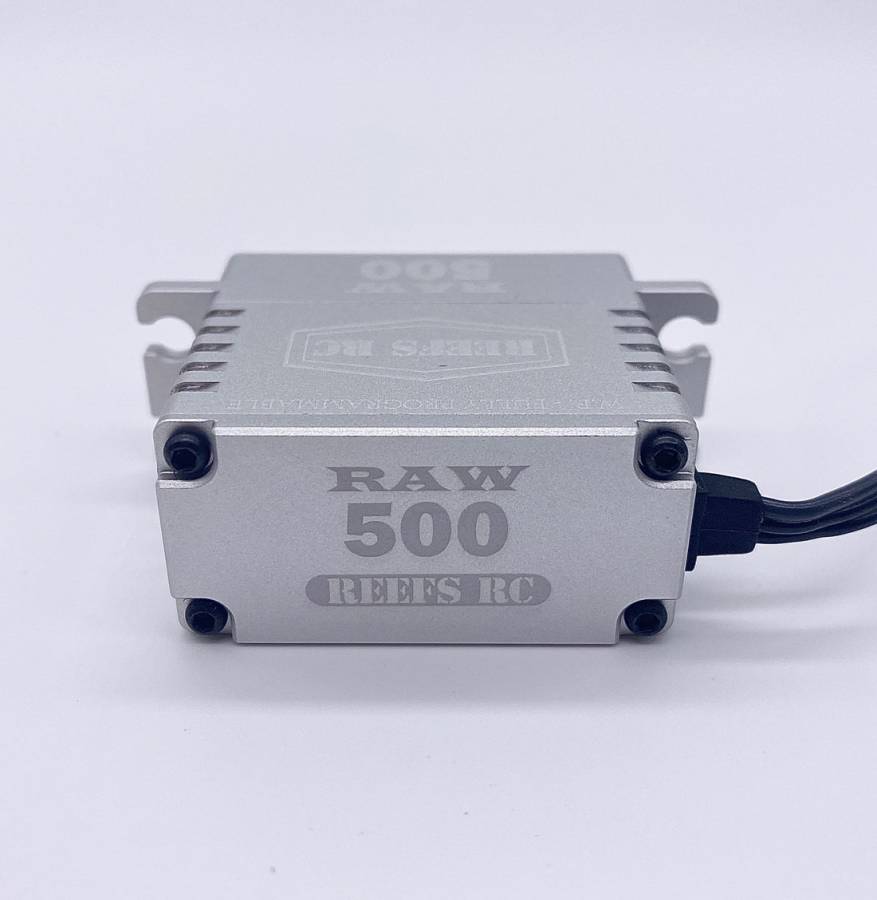

ADDITIONAL PHOTOS|
|
|
|
|
