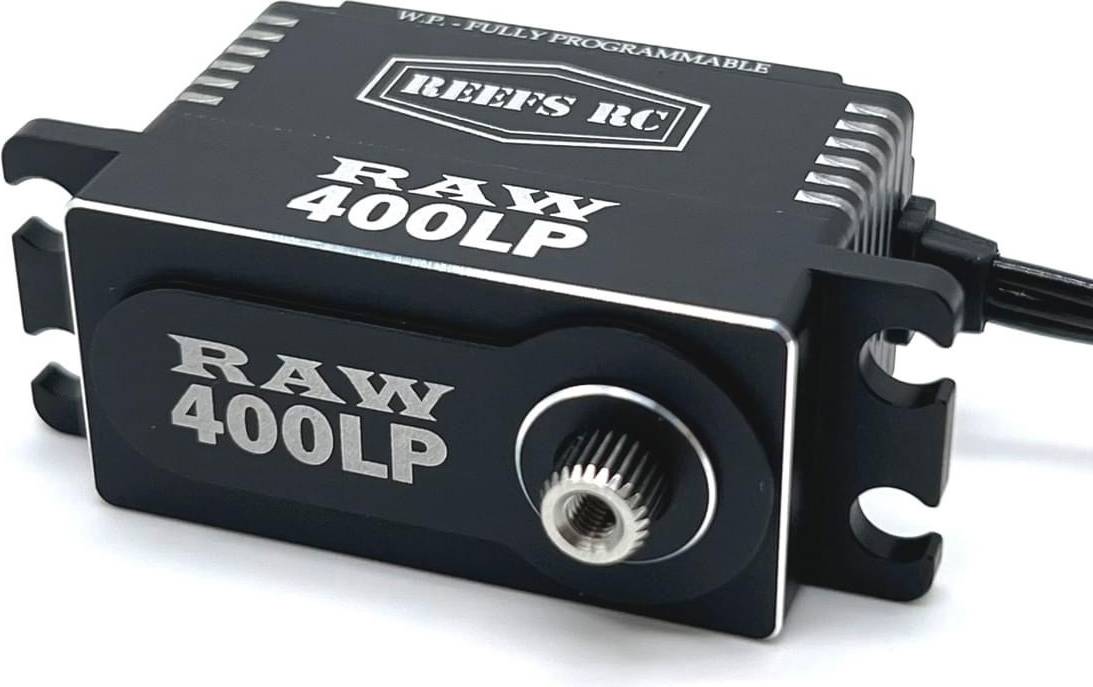

Servo RAW 400 LP Fully Programmable Waterproof Servo Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.6 mm
Length:
20.1 mm
Width:
29.5 mm
Height:
65 g
Weight:
Steel
Geartrain:
4.8 - 8.4 v
Voltage Range:
25.2 kg-cm (350 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
30.2 kg-cm (420 oz-in)
Torque @ 7.4V:
0.08 sec/60°
Speed @ 7.4V:
33.1 kg-cm (460 oz-in)
Torque @ 8.4V:
0.065 sec/60°
Speed @ 8.4V:
FEATURES
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Fully Programmable w/ REEFS Software (REEFS USB LINK required)
