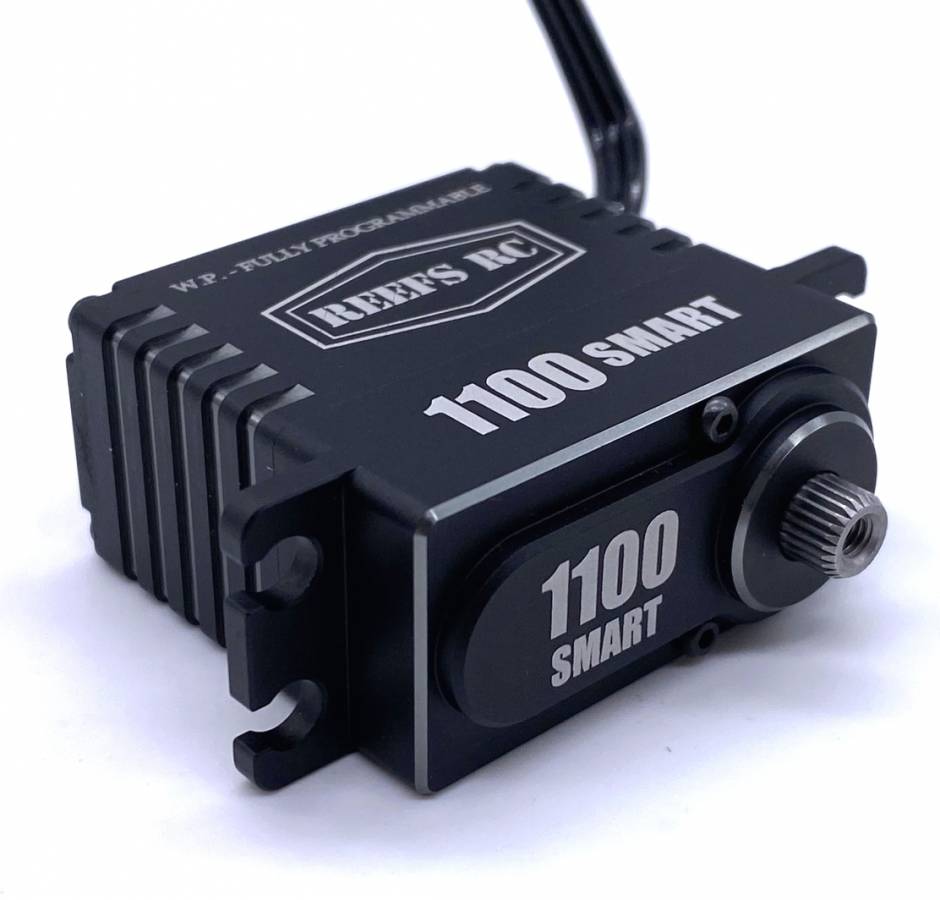

Servo/Winch BLK 1100 Smart
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
4 Ball Bearings
Bearing/Bushing:
25 Tooth
Output Spline:

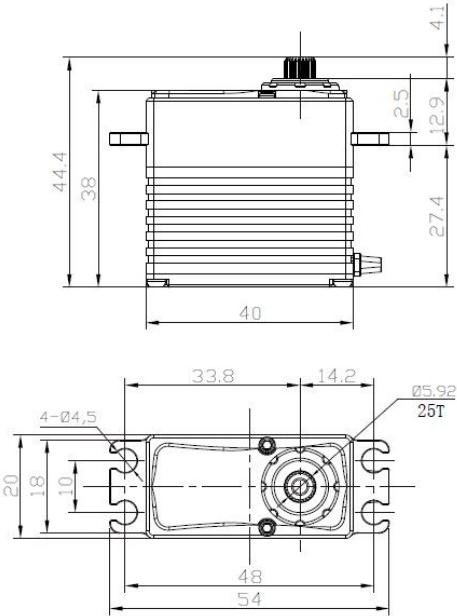

40 mm
Length:
20 mm
Width:
38 mm
Height:
Steel
Geartrain:
4 Pole Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
55 kg-cm (760 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
67 kg-cm (930 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
79 kg-cm (1100 oz-in)
Torque @ 8.4V:
0.12 sec/60°
Speed @ 8.4V:
85 g
Weight:
FEATURES
High Torque High Speed Brushless servo or winch
Comes as servo out of the box, can be changed to winch with the REEFS LINK and Software.
Built in preprogrammed winch controller
WATERPROOF: 7 Point Seals
Magnetic angle sensor
Pulse Width Modulation Control
4 Pole Brushless Motor
REEFS LINK required for Programming
BEC Not Req. Recommended for max performance
click image to enlarge

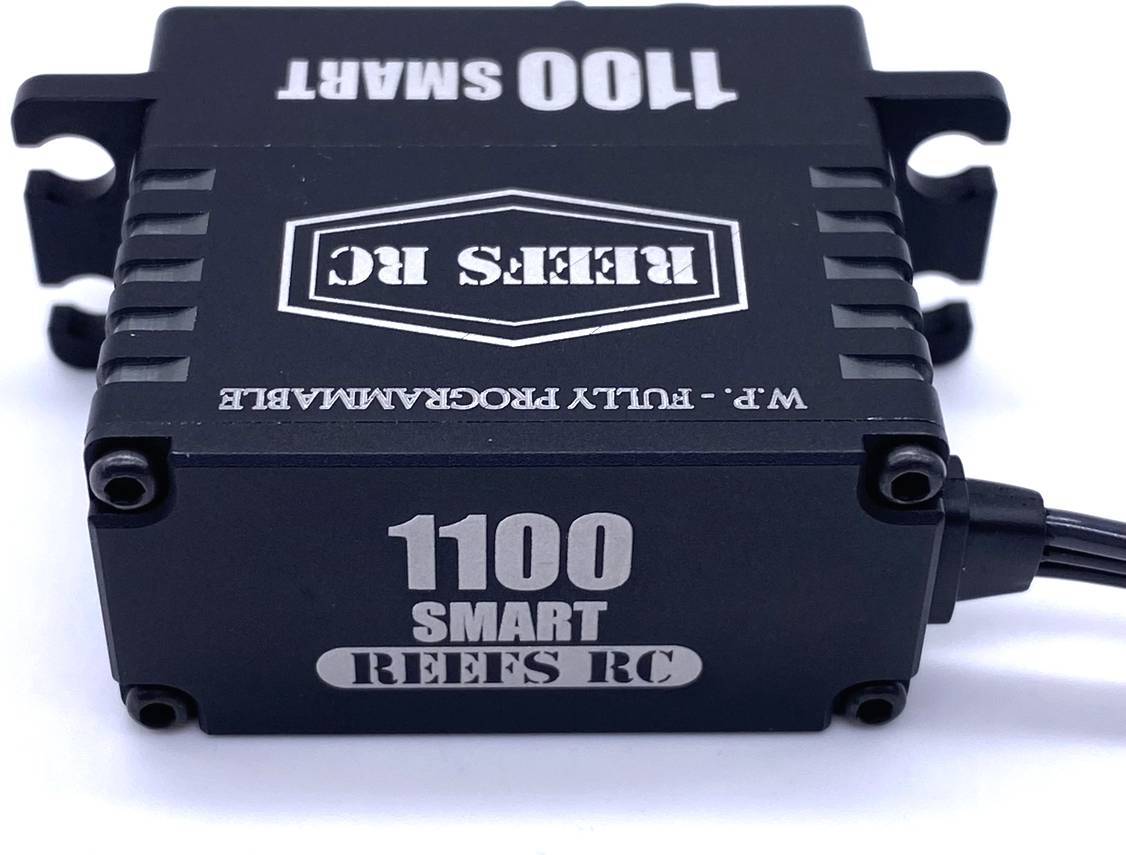

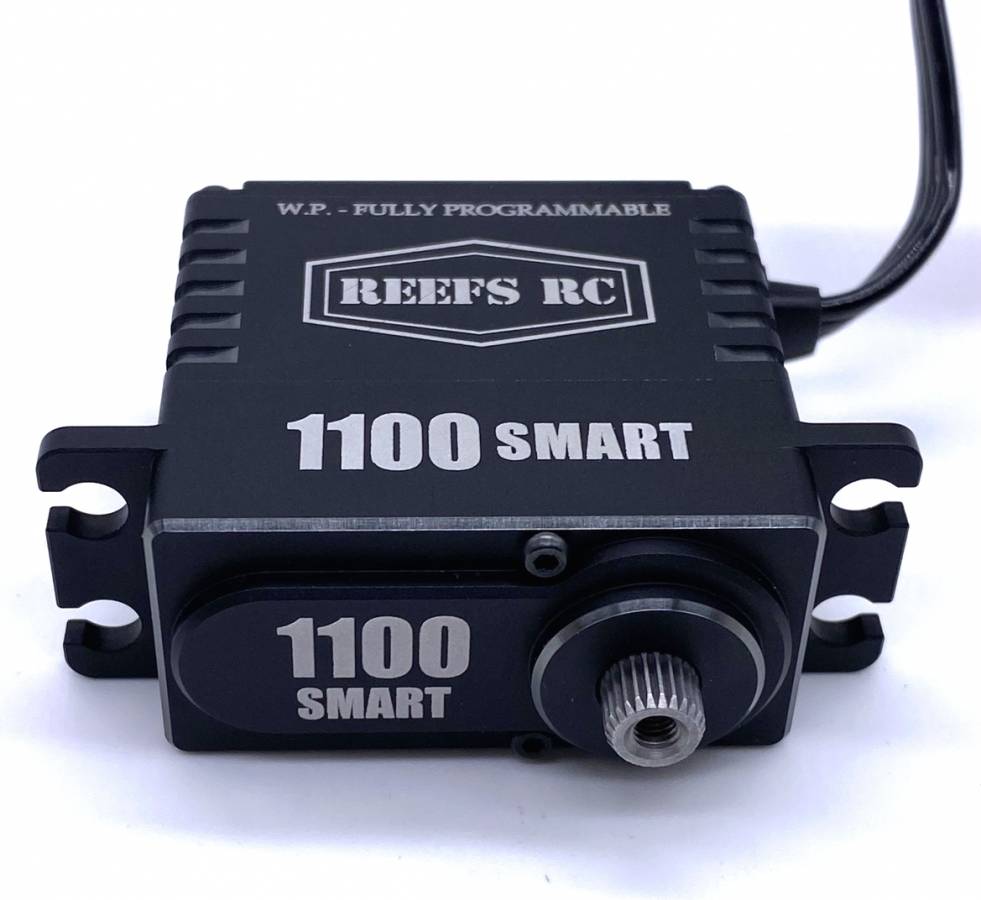

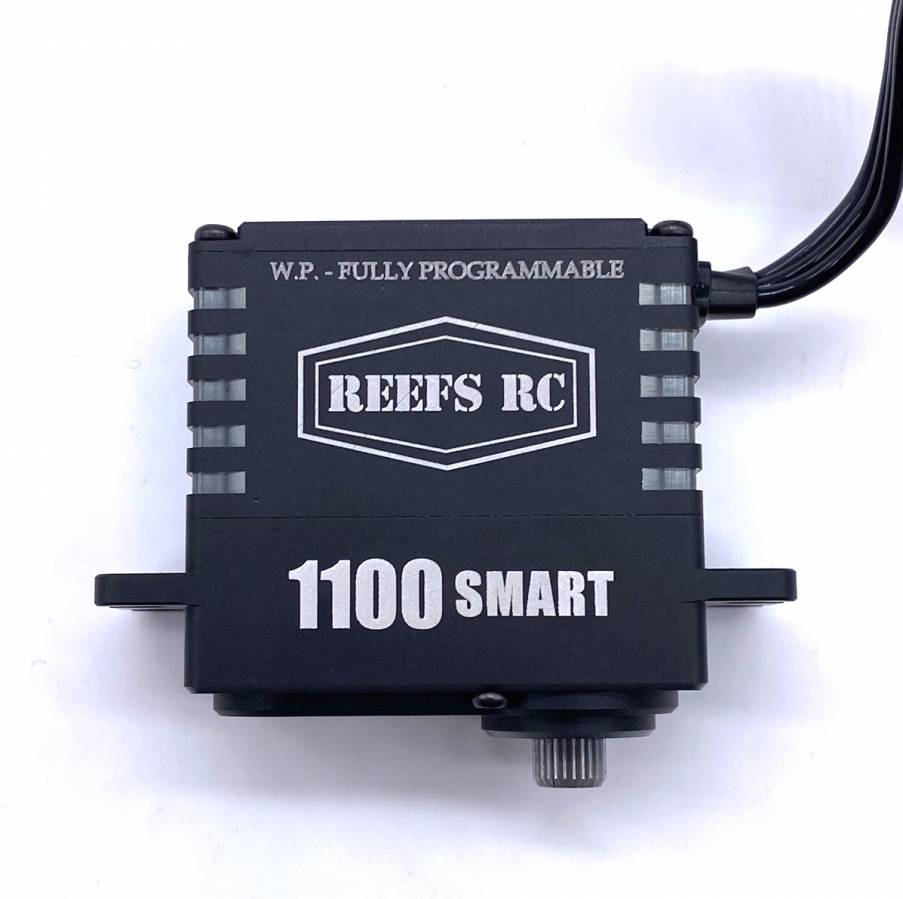

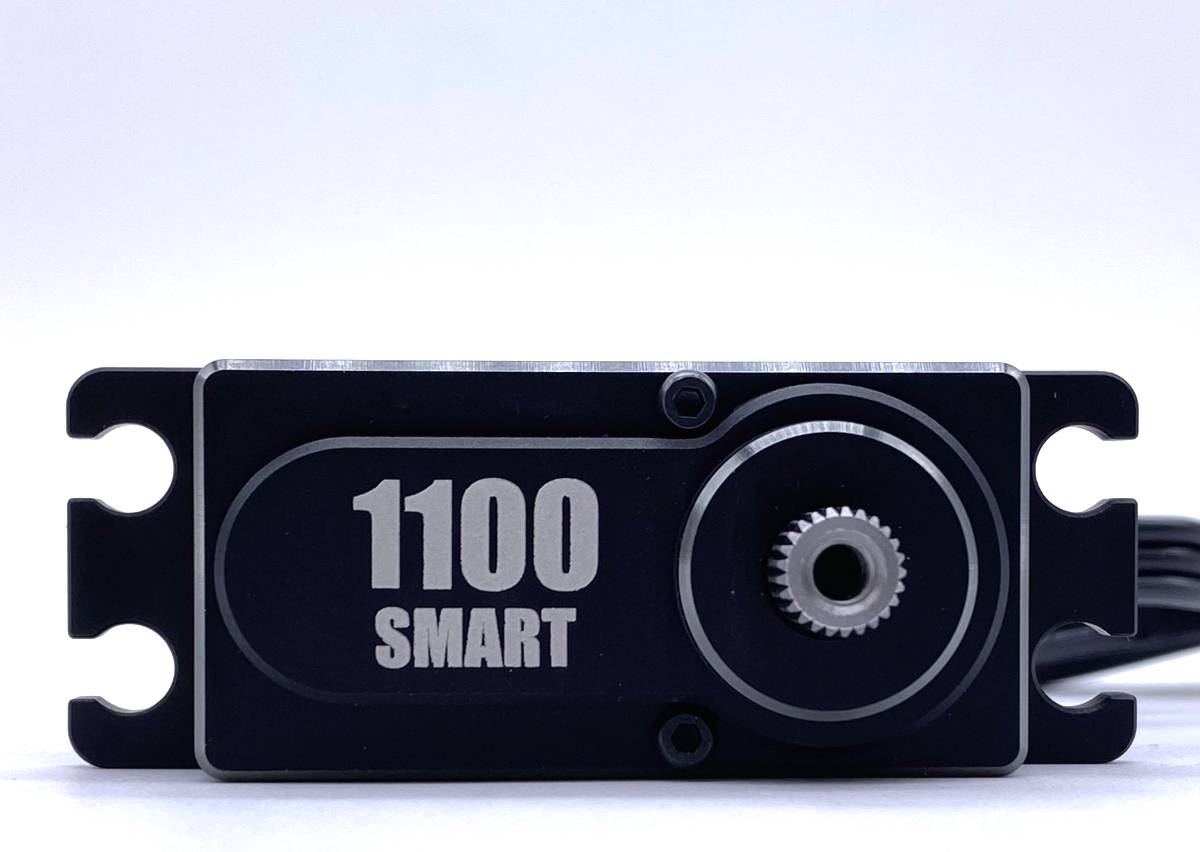

ADDITIONAL PHOTOS
|
|
|
|
|
