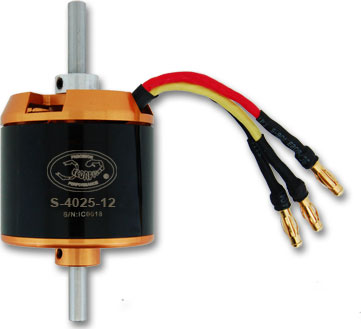

Scorpion S4025-12T Motor 440Kv
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Electric Aircraft Motors
But only from... SCORPION POWER SYSTEMS
All items from... SCORPION POWER SYSTEMS
But only from... SCORPION POWER SYSTEMS
All items from... SCORPION POWER SYSTEMS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
40 mm
Stator Diameter:
25 mm
Stator Thickness:
12
Number Of Arms:
14
Magnet Poles:
12 Turn Delta
Motor Wind:
22-Strand 0.25mm
Motor Wire:
440 KV
Motor Kv:
1.25 A
No-Load Current (lo/10V):
0.022 Ohms
Motor Resistance (Rm):
85 A
Max Continuous Current:
2000 W
Max Continuous Power:
347 g
Weight:
48.9 mm
Outside Diameter:
6 mm
Shaft Diameter:
51.15 mm
Body Length:
83.40 mm
Overall Shaft Length:
7 Cells
Max LiPo Cells:
