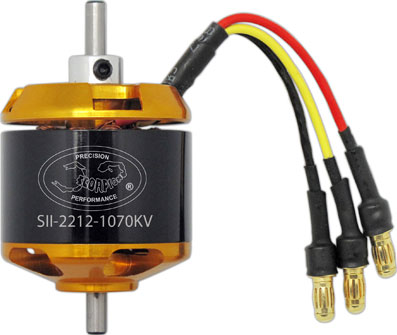

Scorpion SII2212-1070Kv Motor
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Electric Aircraft Motors
But only from... SCORPION POWER SYSTEMS
All items from... SCORPION POWER SYSTEMS
But only from... SCORPION POWER SYSTEMS
All items from... SCORPION POWER SYSTEMS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
22 mm
Stator Diameter:
12 mm
Stator Thickness:
12
Number Of Arms:
14
Magnet Poles:
18 Turn Delta
Motor Wind:
5-Strand 0.21mm
Motor Wire:
1070 KV
Motor Kv:
0.59 A
No-Load Current (lo/10V):
0.091 Ohms
Motor Resistance (Rm):
15 A
Max Continuous Current:
160 W
Max Continuous Power:
58 g
Weight:
27.9 mm
Outside Diameter:
2.98 mm
Shaft Diameter:
30 mm
Body Length:
49 mm
Overall Shaft Length:
3 Cells
Max LiPo Cells:
PRODUCT RESOURCES
Customers who bought this item also bought...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
SII2212-1070
