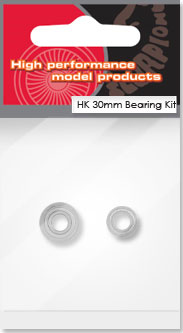

In order to keep your motor in top running condition, you need a good set of bearings. Occasionally, after a crash or landing in the dirt, the bearings can become damaged and need to be replaced. The Scorpion HK-3026 V2 Motor Bearing Kit includes a pair of original equipment replacement bearings to fit the Scorpion HK-3026 Series helicopter motors that have a serial number that starts with IE or later.
This bearing kit contains 2 bearings. The first measures 13mm OD x 5mm ID x 4mm thick for the output end, plus a second bearing that measure 10mm OD x 5mm ID x 4mm thick. These are an exact replacement for the stock bearings that come with the motors.
Please note, The bearings are an exact fit into the motor housings, so they do fit snugly. When removing the old bearings, you may need to gently tap them out. However, when installing the new bearings, do not tap them in with anything, as this can dent the ball races and ruin the bearings. When installing ball bearings they need to be pressed in by the outer part of the race. Never apply pressure to the inner race, as this can damage the bearing and lead to premature failure.
