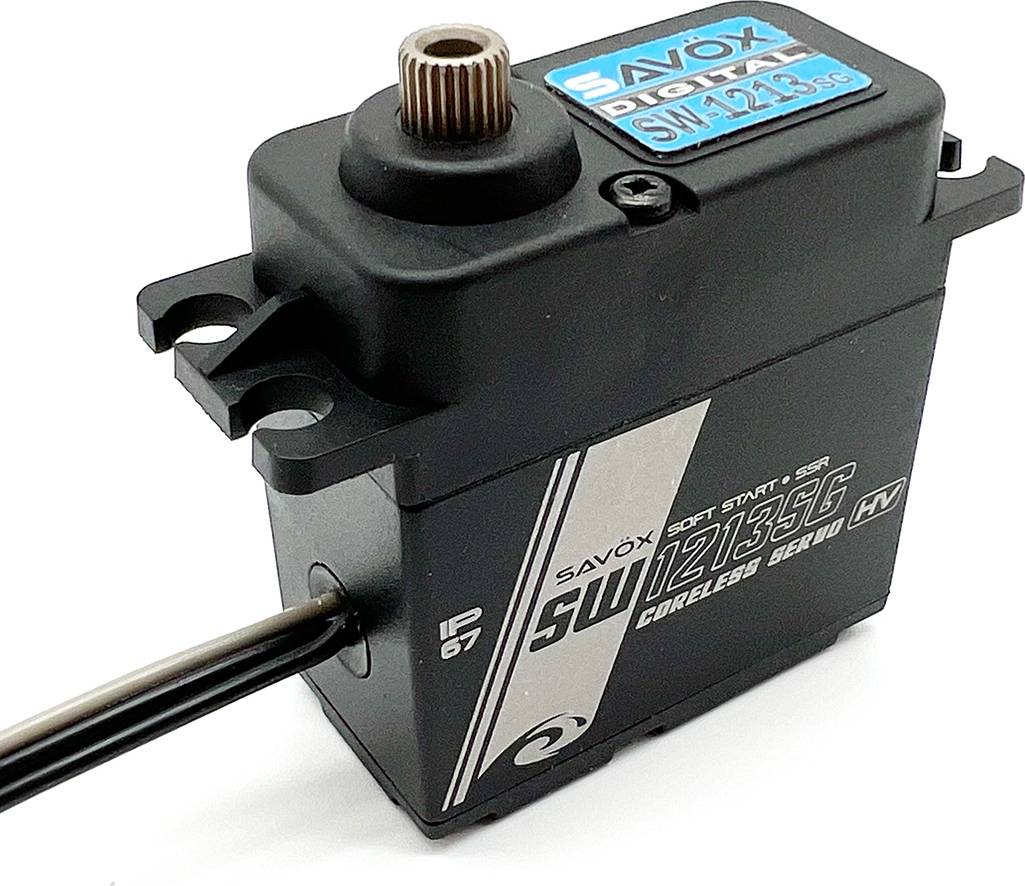

Servo Tall Waterproof Hi_Torque Coreless Digital .16/527.3oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Scaler and Crawler
Application:
Bearing
Bearing/Bushing:
40.6 mm
Length:
20.7 mm
Width:
46.1 mm
Height:
83 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
7.4 v
Voltage Range:
38 kg-cm (527.7 oz-in)
Torque @ 7.4V:
0.16 sec/60°
Speed @ 7.4V:
FEATURES
- Center aluminum with nylon composite top and bottom case
- Operates directly on 7.4v without the need for an external BEC
- Precision ball bearings
This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep).
4710006994833 4710006994833
SAVSW1213SG
