Tall Waterproof Coreless Digital .15/277.7oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Standard
Size Class:
Digital - Waterproof
Type:
RC Cars, Truggies, Buggies, Boats
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.6 mm
Length:
20.7 mm
Width:
42.0 mm
Height:
71 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
16 kg-cm (222.2 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES

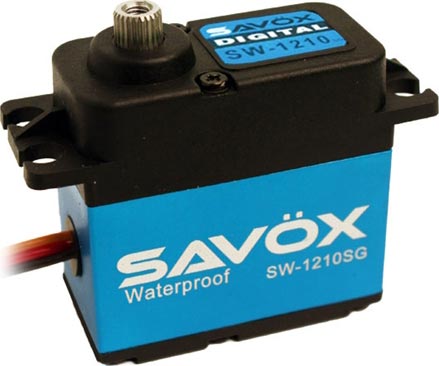

The SW1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo boasts 277.7 oz-in of torque and a speed of .15 at 6.0V. It combines leading edge technology with super high 12-bit (4096) resolution and steel gears for one versatile and waterproof servo! This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
- Combines leading edge technology with super high 12 bit (4096) resolution and steel gears.
- Waterproof.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Extremely strong steel gears ensure long-life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for RC cars, trucks, buggies, and boats.
