Waterproof 1/5th Digital HV .15/486oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
65.8 mm
Length:
30.00 mm
Width:
59.1 mm
Height:
200 g
Weight:
Metal
Geartrain:
6-7.4 v
Voltage Range:
28 kg-cm (389oz-in)
Torque @ 6.0V:
.18 sec/60°
Speed @ 6.0V:
35 kg-cm (486.1 oz-in)
Torque @ 7.4V:
.15 sec/60°
Speed @ 7.4V:
Dual BB
Bearing:
FEATURES

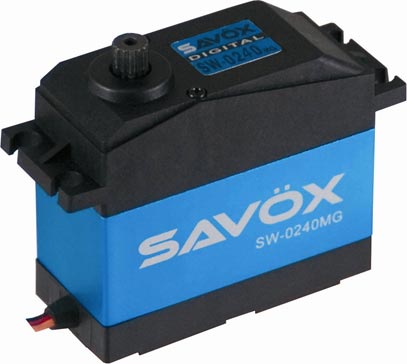

The SW0240MG Is our waterproof high torque, high speed 5th scale metal gear digital servo. This servo is high voltage capable and features .15sec transit and 486.1oz-in torque @ 7.4V
- Combines leading edge technology with super high 12 bit (4096) resolution
- Waterproof case design.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Strong metal gear train for added durability
- Our servos are totally green - from materials to production, these servos are environmentally friendly.
- This servo is the perfect addition to your 5th scale truck or buggy.
