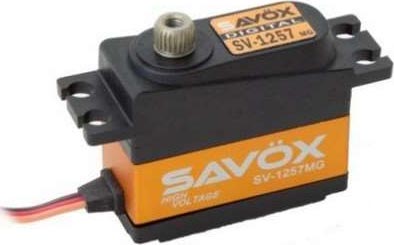

High Voltage Dig Mini MG Heli .055/55oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Low Profile
Size Class:
Digital
Type:
Heli, low profile wings, touring cars
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.8 mm
Length:
20.2 mm
Width:
25.4 mm
Height:
57 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
4.8 - 6.0 v
Voltage Range:
8 kg-cm (111.1 oz-in)
Torque @ 4.8V:
0.10 sec/60°
Speed @ 4.8V:
10 kg-cm (138.9 oz-in)
Torque @ 6.0V:
0.076 sec/60°
Speed @ 6.0V:
FEATURES
The SB2261MG pushes139oz of torque and a blistering .076 seconds transit time. This is a great upgrade to most comparably priced servos. The new all aluminum case with finned center section helps dissipate heat and the compact size allows this servo fitment in tight spaces.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution. and titanium gears.
- Brushless motor provides longer life and cooler operating temps.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Savox servos are totally green - from materials to production, these servos are environmentally friendly.
- Ideal use in tight fitting applications such as helis, low profile wings, and touring cars.
