High Voltage Standard Digital .13/83.3oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Standard
Size Class:
Digital High Voltage
Type:
Aircraft, 1/8 scale, 1/10 scale cars & trucks
Application:
Universal
Connector Type:
Bearing & Bushing
Bearing:
Dual BB
Bearing:
40.7 mm
Length:
20.2 mm
Width:
37.0 mm
Height:
46 g
Weight:
Plastic
Geartrain:
Brushed
Motor Type:
6.0 - 7.4 v
Voltage Range:
4.5 kg-cm (63 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
6 kg-cm (83.32 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
FEATURES

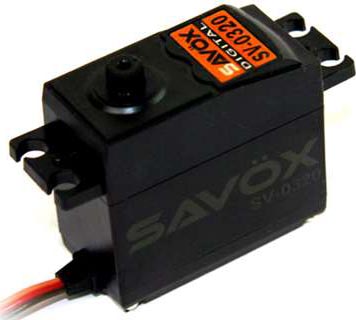

This is the Savox SV-0320 High Voltage Digital Servo.
Features:
- High voltage capable on a budget
- DC Motor
- Strict quality control of plastic components
- Totally Green – from materials to production, these servos are environmentally friendly.
- Ideal in planes, 1/8 scale, and 1/10 scale cars and trucks.
- Suitable for use in boats and helis
