High Voltage Standard Digital MG .13/111oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Standard
Size Class:
High Voltage
Type:
Boat & Heli
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.7 mm
Length:
20.2 mm
Width:
37.0 mm
Height:
59 g
Weight:
Metal
Geartrain:
6.0 - 7.4 v
Voltage Range:
6.5 kg-cm (90.3 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
8 kg-cm (111.1 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
FEATURES

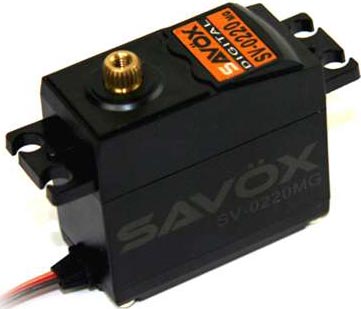

This is the Savox SV-0220MG High Voltage Digital Servo.
Features:
- High voltage capable on a budget
- DC Motor
- Totally Green – from materials to production, these servos are environmentally friendly.
- Ideal in planes, 1/8 scale, and 1/10 scale cars and trucks.
- Suitable for use in boats and helis
