Micro Digital .16/36.1oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Digital
Type:
21 Tooth
Output Spline:

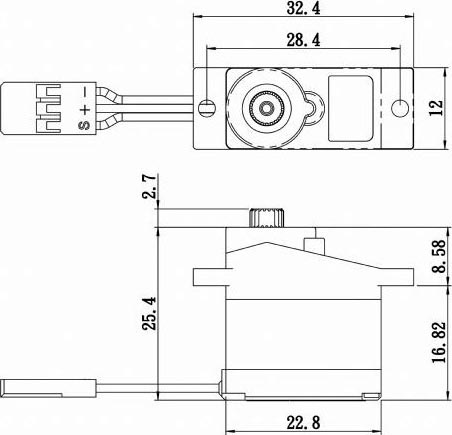

22.8 mm
Length:
12 mm
Width:
25.4 mm
Height:
12.3 g
Weight:
Brushed
Motor Type:
4.8 - 6 v
Voltage Range:
2.2 kg-cm (30.55 oz-in)
Torque @ 4.8V:
0.21 sec/60°
Speed @ 4.8V:
2.6 kg-cm (36 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
FEATURES
- Aluminum middle case allows for cooler operating temperatures.
- Ideal for small planes, and 450 size helicopters.
- "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

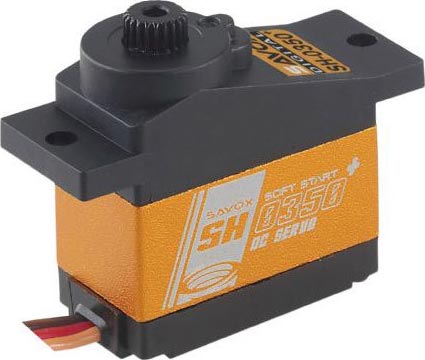

The SH-0350 is a budget-friendly, micro-sized servo with an aluminum case for additional support.
