Micro Digital 0.06/16oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:

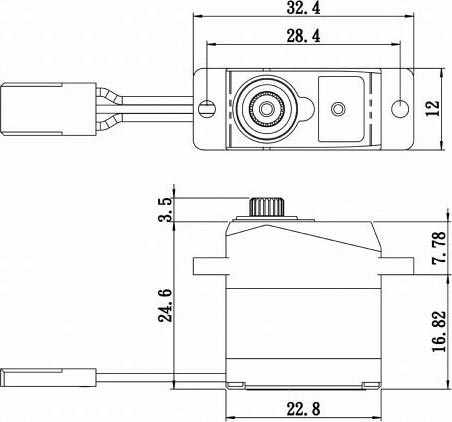

22.8 mm
Length:
12 mm
Width:
25.4 mm
Height:
15 g
Weight:
Metal
Geartrain:
4.8 - 6 v
Voltage Range:
0.8 kg-cm (11.1 oz-in)
Torque @ 4.8V:
0.08 sec/60°
Speed @ 4.8V:
1.2 kg-cm (16.7 oz-in)
Torque @ 6.0V:
0.06 sec/60°
Speed @ 6.0V:
FEATURES
- Metal gear train ensures durability and longevity.
- Aluminum middle case allows for cooler operating temperatures.
- Ideal for small planes, and 450 size helicopters.
- Extremely fast speed for immediate response.
- Dual ball bearing support.

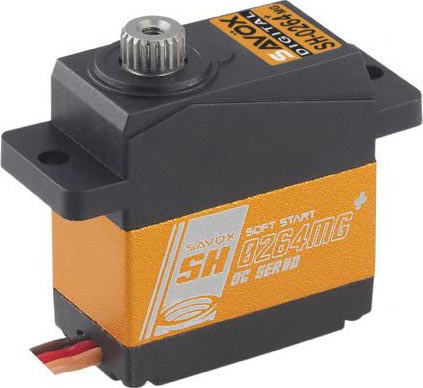

The Savox SH-0264MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006994345 4710006994345
SAVSH0264MGP
