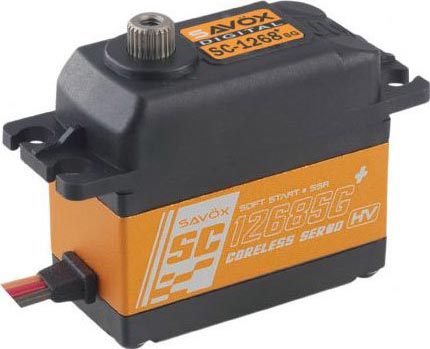

HV Digital High Torque Metal Gear .11/347oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

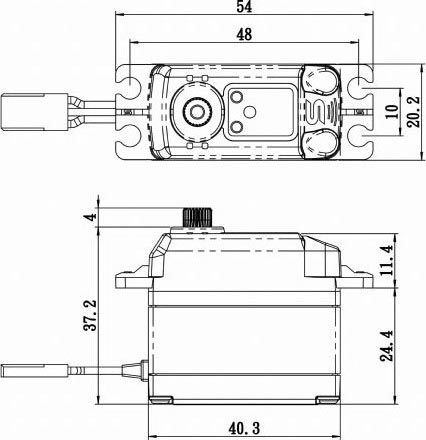

40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
62 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
6.0 - 7.4 v
Voltage Range:
15 kg-cm (208 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
25 kg-cm (347.18 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
FEATURES
- Super strong and precision made unique steel gears provide durability and survive heavy use.
- Capable of HV operation.
- Great torque from a standard size.
- Ideal for 1/8 buggies, and other applications desiring high amounts of power.
- "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
The SC-1268SGP is a high torque servo that delivers when called upon due to it's strong output and durable gear train.
click image to enlarge
ADDITIONAL PHOTOS
|
