Digital Servo Black Edition Hi-Torque 0.09sec/277oz @ 7.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

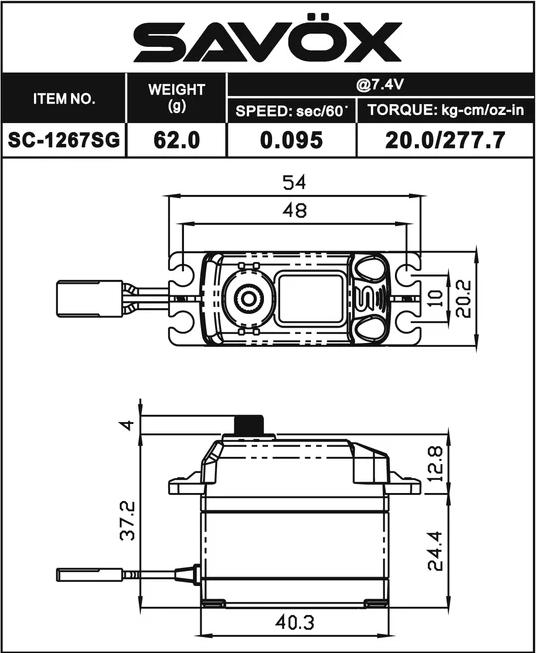

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
62 g
Weight:
20 kg-cm (277.75 oz-in)
Torque @ 7.4V:
0.095 sec/60°
Speed @ 7.4V:
25 Kg-cm (347.2 oz-in)
Torque @ 8.4V:
0.085 sec/60°
Speed @ 8.4V:
FEATURES
- Super strong and precision-made unique steel gears provide durability and survive heavy use.
- Sleek black design with laser etching and a shorter 200mm black lead wire.
- Capable of HV operation.
- Good speed and torque for numerous applications.
- Great replacement for RTR vehicles and other applications.

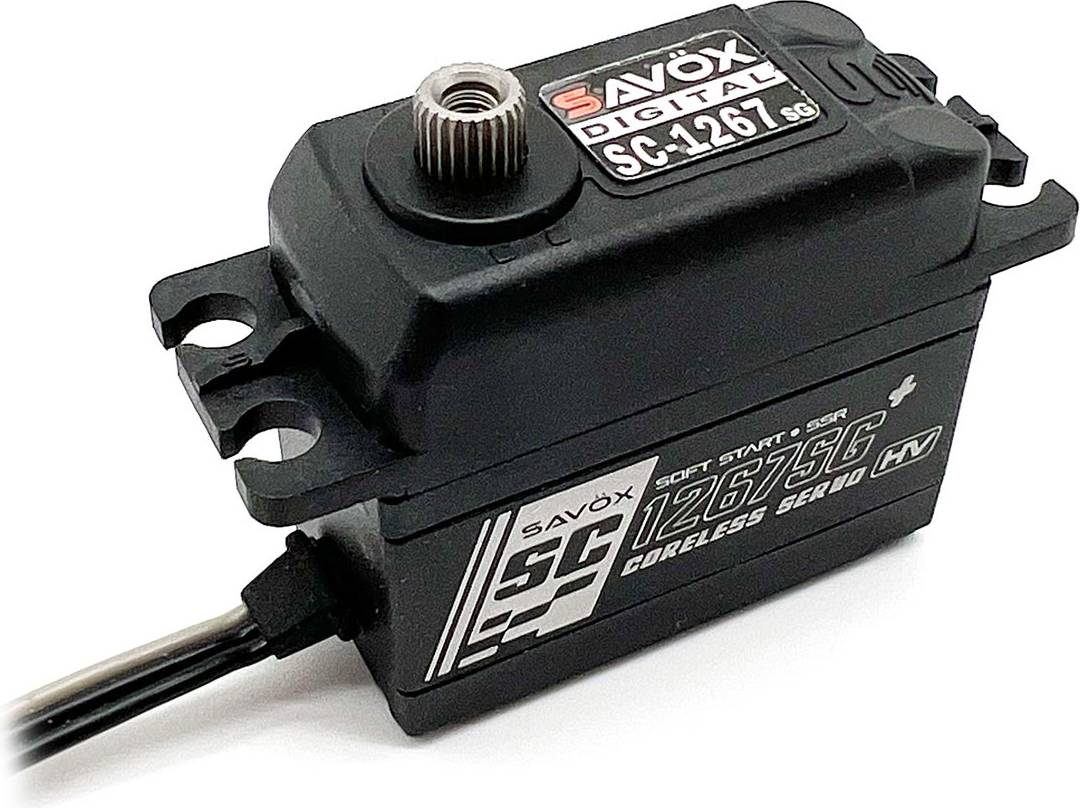

The SC-1267SGP-BE servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo, and with an all black color providing a stealth look.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
