Coreless Digital Titanium Gear .08/166oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

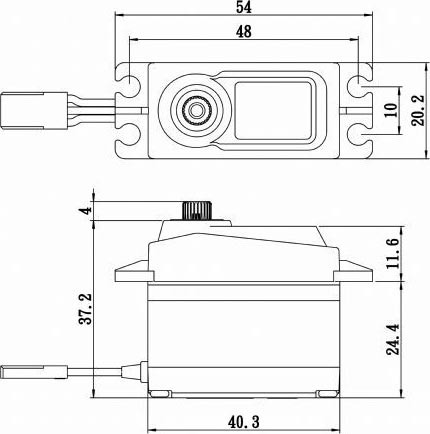

40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
64 g
Weight:
Titanium
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
9.6 kg-cm (133.3 oz-in)
Torque @ 4.8V:
0.10 sec/60°
Speed @ 4.8V:
12 kg-cm (166.6 oz-in)
Torque @ 6.0V:
0.08 sec/60°
Speed @ 6.0V:
FEATURES
- Extremely strong titanium gears ensure long-life, durability, and light weight.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
- Aluminum middle case allows for cooler operating temperatures.

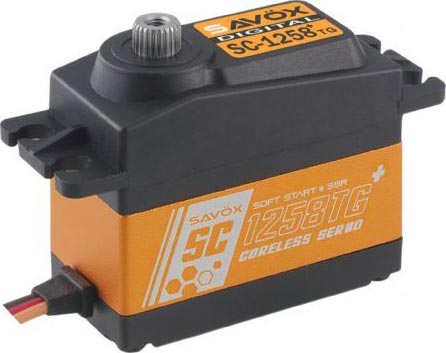

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation. It is ideal for applications requiring high speed.
