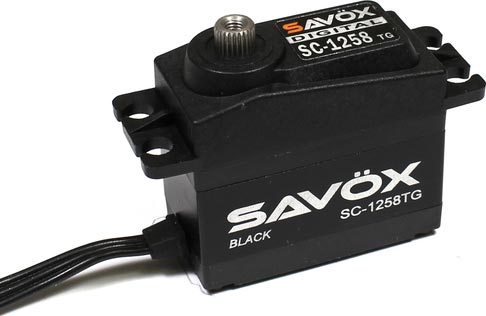

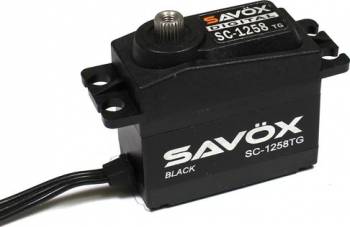

Coreless Digital Servo Black Edition Std Size
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||

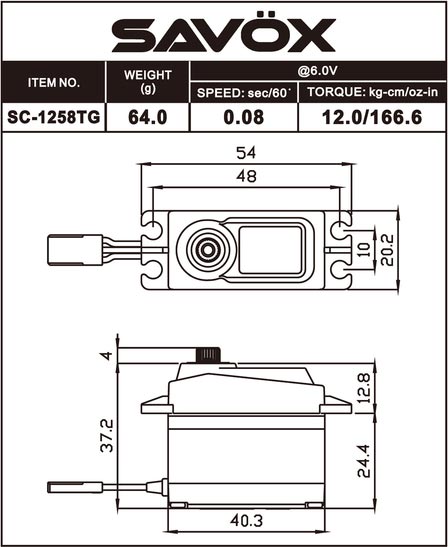

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
52.4 g
Weight:
9.6 kg-cm (133.3 oz-in)
Torque @ 4.8V:
0.10 sec/60°
Speed @ 4.8V:
12 kg-cm (166.7 oz-in)
Torque @ 6.0V:
0.08 sec/60°
Speed @ 6.0V:
FEATURES
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Totally green from materials to production, these servos are environmentally friendly.
- Ideal for plane applications where a minimized backlash is needed.
The SA1258TG pushes167 oz of torque and a blistering .08 seconds transit time. This is a great upgrade to most comparably priced servos. The minimized backlash on the SA1258TG is helpful in plane wings for greater accuracy and less gear play.
click image to enlarge
ADDITIONAL PHOTOS|
|
|
PRODUCT RESOURCES
4710006993232 4710006993232
SAVSC1258TG-BE
