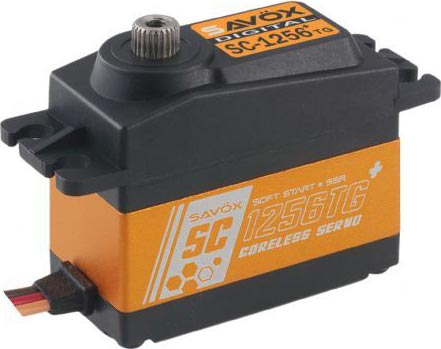

Coreless Digital High Torque TG .15/277oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

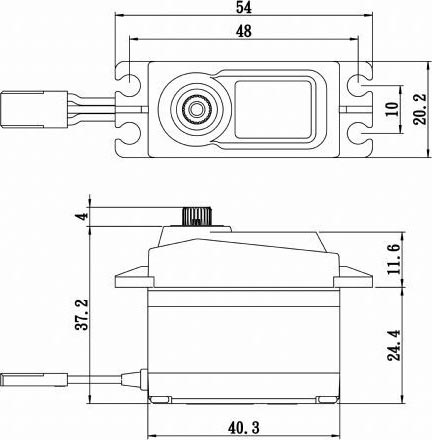

SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
64 g
Weight:
Titanium
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
16 kg-cm (222.2 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
- Titanium gears ensure long life, durability, and lighter weight.
- Minimized backlash for precision aerobatic airplane use.
- Aluminum middle case to help with cooler operating temperatures.
The SA-1256TG Plus servo is perfect for those who are looking for a big upgrade for RTR servos. SA series servos feature minimized backlash, making them ideal for use on flying surfaces of RC planes.
click image to enlarge
ADDITIONAL PHOTOS
|
