Digital Standard Metal Gear .19/145oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

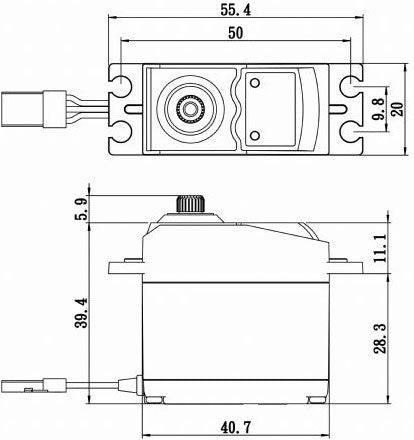

40.7 mm
Length:
19.6 mm
Width:
39.4 mm
Height:
49 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
4.8 - 6.0 v
Voltage Range:
7.25
Torque @ 4.8V:
0.23 sec/60°
Speed @ 4.8V:
10.5
Torque @ 6.0V:
0.19 sec/60°
Speed @ 6.0V:
FEATURES

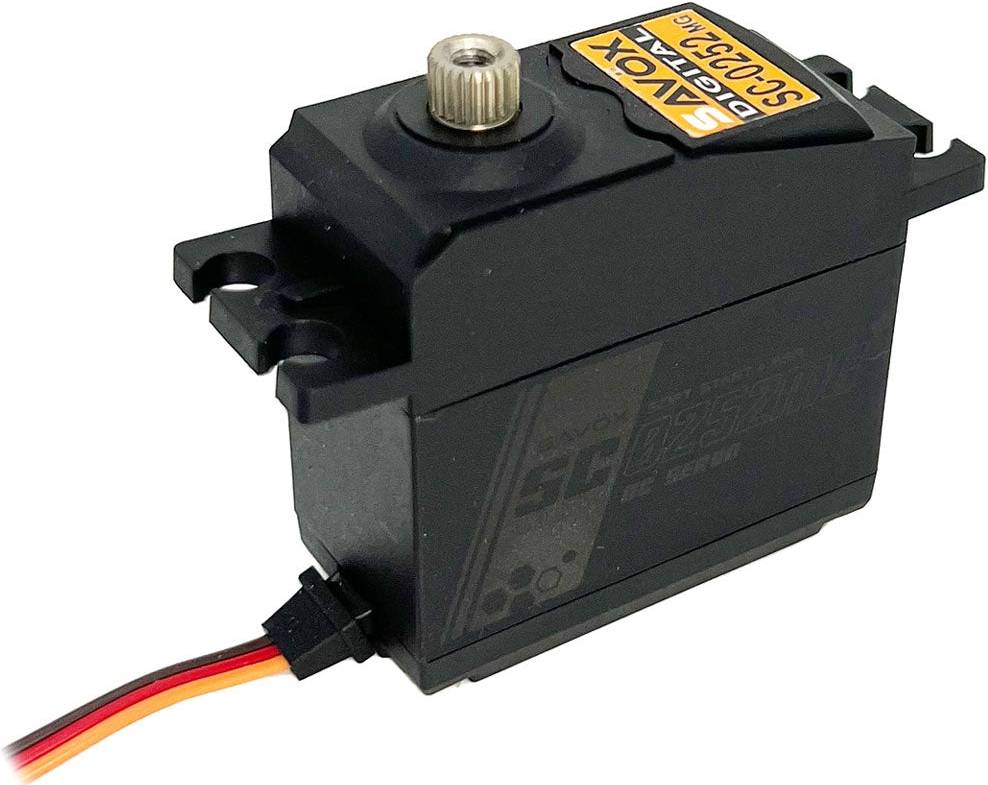

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
click image to enlarge

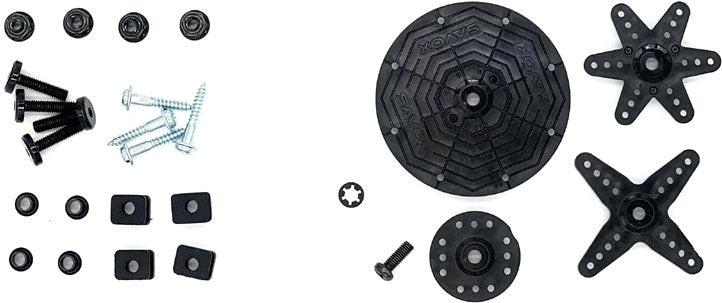

ADDITIONAL PHOTOS
|
|
