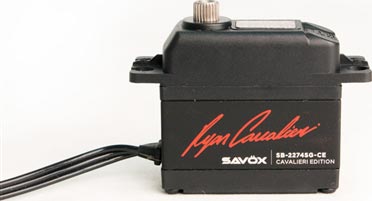

HV Brushless Servo 0.08sec/347oz Cavalieri Ed.
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

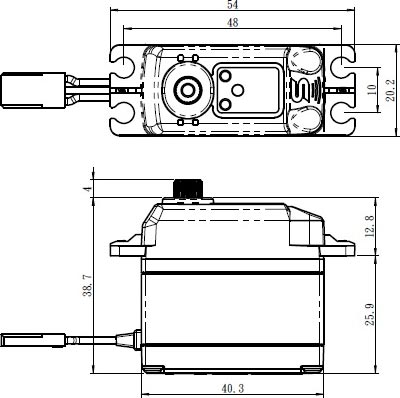

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
38.5 mm
Height:
69
Weight:
Steel
Geartrain:
Brushless
Motor Type:
7.4 v
Voltage Range:
347.2 oz-in
Torque @ 7.4V:
0.08 sec/60°
Speed @ 7.4V:
FEATURES
Savox USA and 4-time IFMAR World Champion Ryan Cavalieri are delighted to announce a premium assortment of Signature Edition Savox servos. Exclusive to North America, each servo features an optimized deadband for enhanced on-center feel, increased holding torque, and ultra flexible lead wires. The 2274 contains a precision steel gear train and is suitable for throttle and steering on 1/8 buggies, truggies and monster trucks. The HV circuitry allows for direct use of 7.4v Lithium receiver packs without the use of a voltage regulator.
Note: Some receivers cannot be used with 7.4v input voltage.
click image to enlarge

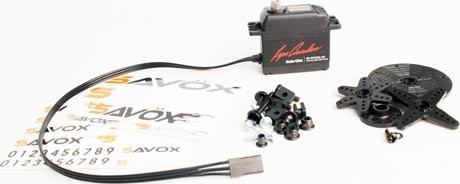

ADDITIONAL PHOTOS
|
|
