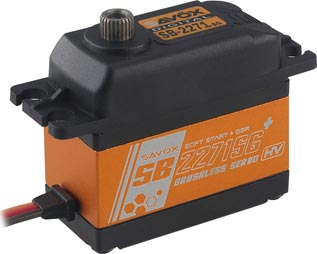

Servo Digital High Voltage Brushless 0.065sec/277oz @ 7.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
1/10 Buggies and Trucks
Application:
40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
69 g
Weight:
Steel
Geartrain:
15 kg-cm (208.3 oz-in)
Torque @ 6.0V:
0.085 sec/60°
Speed @ 6.0V:
20 kg-cm (278 oz-in)
Torque @ 7.4V:
0.065 sec/60°
Speed @ 7.4V:
FEATURES
- Unique steel gear train.
- Capable of HV operation.
- Brushless motor for smooth operation and efficiency.
- Ideal for 1/10 buggies and trucks, and some heli applications
The Savox SB-2271SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
