HV Brushless Digital Hi-Torq .12/444oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

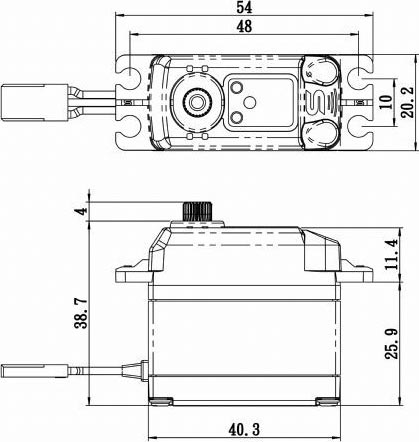

SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
74 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
25 kg-cm (347.18 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
40 kg-cm (555.5 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
45 kg-cm (625 oz-in)
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
FEATURES
- Extremely strong unique steel gears ensure long-life and durability.
- Brushless motor for smooth operation and efficiency.
- Ideal for rock crawlers, monster trucks, and control surfaces for giant scale aircraft.

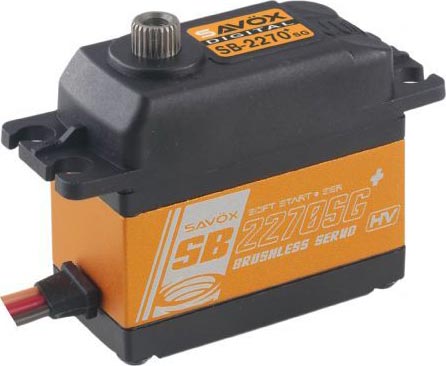

The Savox SB-2270SG Plus Monster Torque Servo features a brushless motor and steel gears to ensure long lasting performance.
