SAVSB2230SG

Tall HV Brushless Digital Hi-Torq .13/583oz

Product Info | Replacement Parts
SAVOX

SAVSB2230SG
Tall HV Brushless Digital Hi-Torq .13/583oz
By SAVOX
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... SAVOX
All items from... SAVOX


 Inventory Status Legend
StockStock availability for on-line ordering
0
$179.99
Warehouse ?
StockStock availability for pick up
0
$179.99
Warehouse ?
0
$179.99
Store - Stratford ?
0
$179.99
Store - Edmonton ?
0
$179.99
Store - Mississauga ?
0
$179.99
Store - Ottawa ?
0
$179.99
Store - Oshawa ?
0
$179.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
SB-2230SG Top & Bottom Servo Case w/Scr
$9.99

SB-2230SG Servo Gear Set w/Bearings
$54.99

SPECIFICATIONS
Standard Size
Size Class:
Brushless
Type:
Giant Aircraft, Monster Truck, Crawler, 1/8 Scale
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.3 mm
Length:
20.2 mm
Width:
45.0 mm
Height:
84 g
Weight:
Unique Steel
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
36 kg-cm (500 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
42 kg-cm (583.3 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:

FEATURES

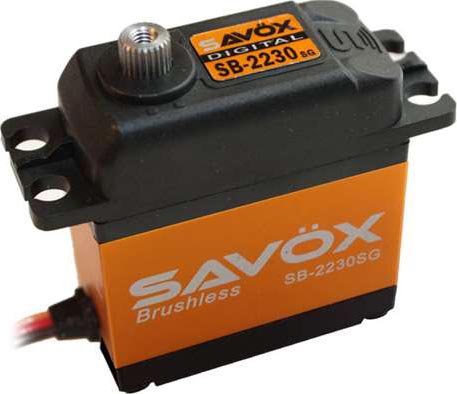

This is the Savox SB-2230SG High Voltage, Monster Torque, Brushless, Tall Size, Steel Gear, Digital Servo.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
Brushless motor provides longer life and cooler operating temps.
Extremely strong unique steel gears ensure long-life and durability.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Our servos are totally green – from materials to production, these servos are environmentally friendly.
Ideal for giant scale aircraft, monster truck, rock crawlers, 1/8 scale.
