Tall Coreless Digital Steel Gear .16/500oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

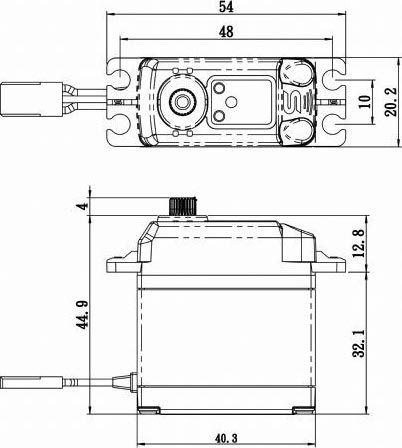

40.3 mm
Length:
20.2 mm
Width:
44.9 mm
Height:
79 g
Weight:
steel
Geartrain:
Coreless
Motor Type:
4.8 - 6 v
Voltage Range:
30 kg-cm (417 oz-in)
Torque @ 4.8V:
0.20 sec/60°
Speed @ 4.8V:
36 kg-cm (500 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
FEATURES
- Extremely strong unique steel gears ensure long-life and durability.
- Ideal for steering on rock crawlers, monster trucks, and large scale aircraft.
- Slightly taller case design.

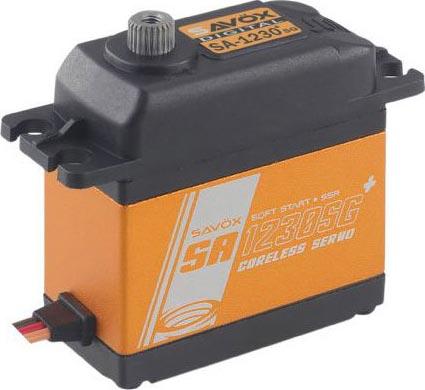

The Savox SA-1230SGP Plus Monster Torque Steel-Gear digital servo is ideal for those requiring extra torque without using a high voltage power source.
click image to enlarge
ADDITIONAL PHOTOS
|
