ER3Ci ExpressLRS ELRS 3Ch Surface Receiver w/Internal Antenna

Product Info
RADIOMASTER

RDOER3CI
ER3Ci ExpressLRS ELRS 3Ch Surface Receiver w/Internal Antenna
By RADIOMASTER
$32.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Radio System Accessories, Surface Receivers
But only from... RADIOMASTER
All items from... RADIOMASTER


 Inventory Status Legend
StockStock availability for on-line ordering
17
$32.99
Warehouse ?
StockStock availability for pick up
17
$32.99
Warehouse ?
1
$32.99
Store - Stratford ?
1
$32.99
Store - Edmonton ?
1
$32.99
Store - Mississauga ?
1
$32.99
Store - Ottawa ?
1
$32.99
Store - Oshawa ?
1
$32.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES
  • • Built-in high-sensitivity ceramic antenna
  • • Based on the Revolutionary ExpressLRS System
  • • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • • Supports 3 PWM Channels
  • • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • • Optimized ground up PCB design
  • • Supports Wi-Fi updates and WEBUI configuration
  • • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • • Designed for all types of surface models

The RadioMaster ER3C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
The ER3C-i ELRS receiver can drive up to 3 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER3C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

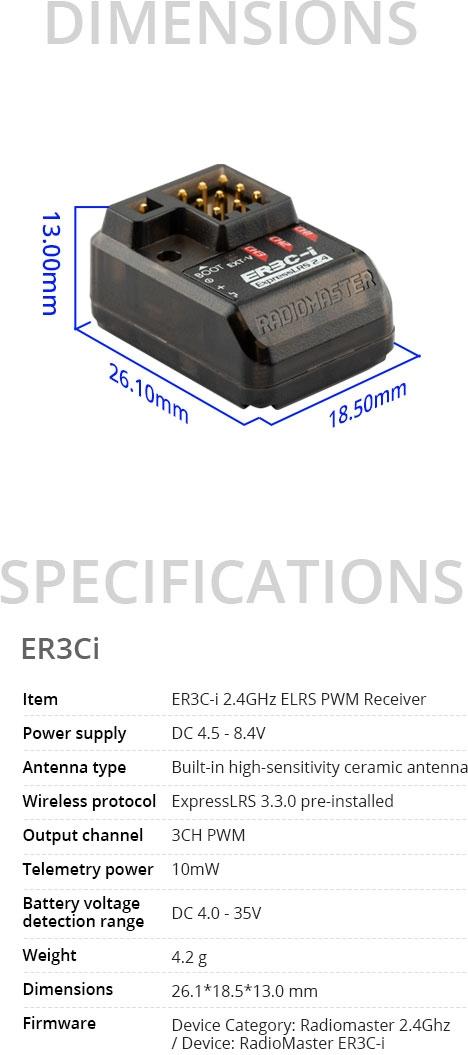

 Specifications

• Item: ER3C-i 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 - 8.4V
• Antenna type: Built-in high-sensitivity ceramic antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 3CH PWM
• Telemetry power: 10mW
• Battery voltage detection range: DC 4.0 - 35V
• Weight: 4.2 grams

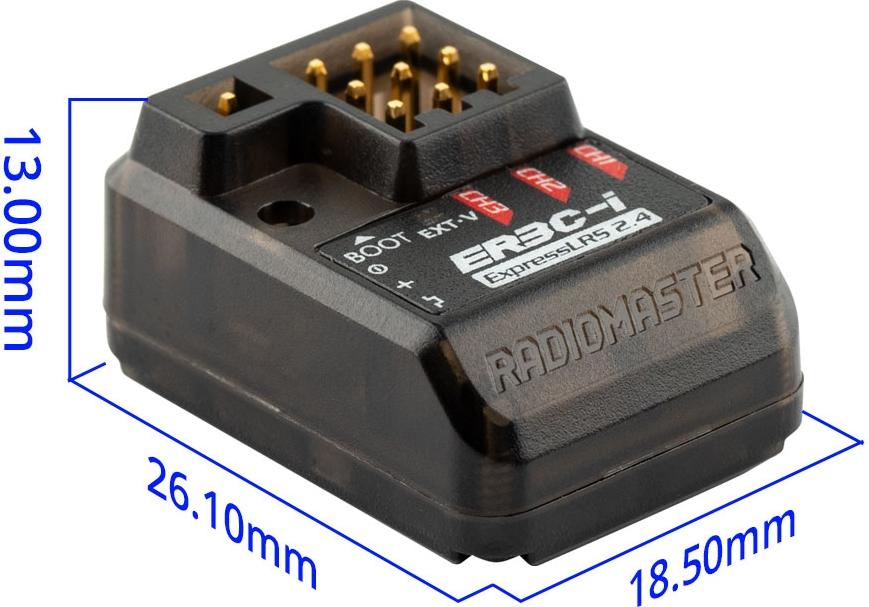

• Dimensions: 26.1*18.5*13.0 mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

 Package Includes

1 * ER3C-i 2.4GHz ELRS PWM Receiver

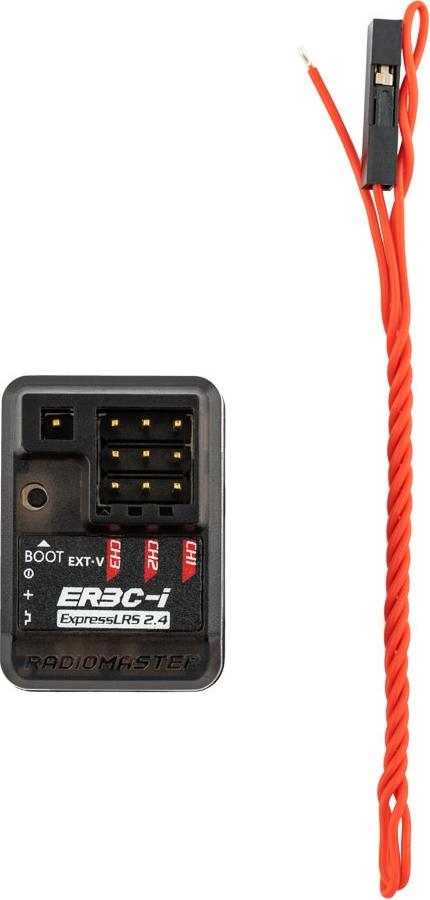

1 * Voltage telemetry wire
1 * User Card
