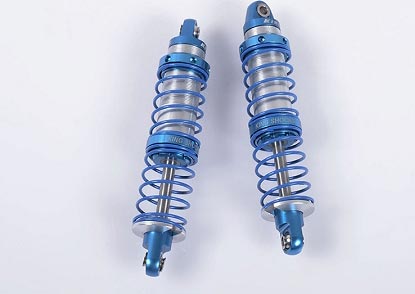

King Off-Road Dual Spring Shocks 90mm
 |
|
|
|
click to enlarge
|
More like this... Car & Truck Accessories, Scale Truck & Crawler
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
- Machined Billet Aluminum
- King on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
- Ball Width: 0.25in / 6.3mm
- Ball Lip Diameter: 0.19in / 4.8mm
- Ball ID: 0.12mm / 3mm
- Hole to Hole (Compressed): 2.55in / 65mm
- Hole to Hole (Uncompressed): 3.54in /90mm
- Overall Length: 3.9in / 99.3mm
- Travel Length: 0.59in / 15mm
- Shock Body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring Body OD: 0.66in / 16.8mm
- Spring Body ID: 0.58in / 14.96mm
- Each Weight: 0.88oz / 25g
These new King Off-Road licensed shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Notes:
Fits RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001) (Front / Rear)
Fits Traxxas Rustler Front Axle, but you will need Steel Button Head Cap Screws M3 x 12mm
To use this shock with the SCX10 II, you will need to use a 3mm spacer on the top mounting point of the shock.
Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
