This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Steering
Type:
1/12 to 1/10 scale Surface
Application:
Dual ball bearing
Bearing:
25 Tooth
Output Spline:
Metal
Geartrain:
Coreless
Motor Type:
4.8-7.4 v
Voltage Range:
127 oz-in
Torque @ 6.0V:
0.05 sec/60°
Speed @ 6.0V:
152 oz-in
Torque @ 7.4V:
0.04 sec/60°
Speed @ 7.4V:
FEATURES

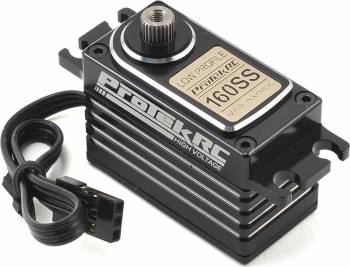

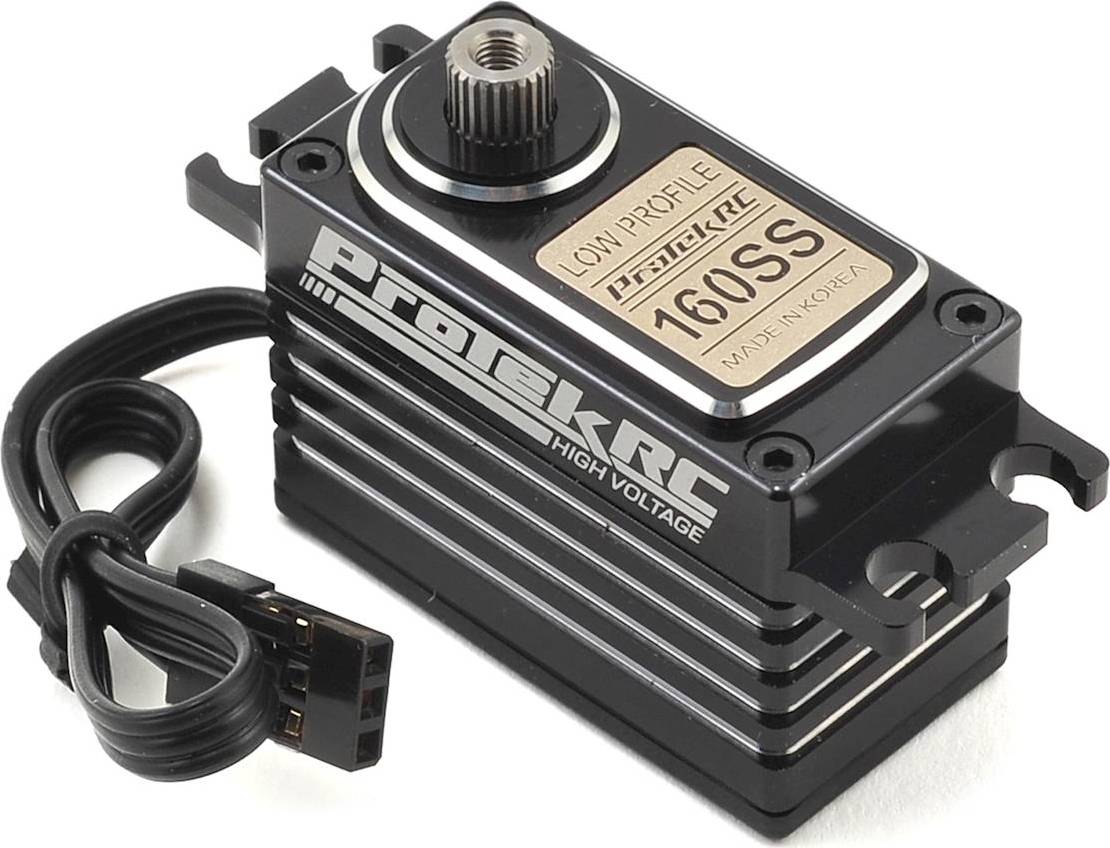

Low Profile Super Speed Metal Gear Servo, High Voltage, Metal Case
The ProTek R/C 160SS High Voltage Low Profile servo delivers 127 oz-in of torque and 0.05 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 152 oz-in and 0.04! Spec's like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.
Plus, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. And for additional rigidity, four blue aluminum servo ear guides are included as alternatives to the rubber grommets.
