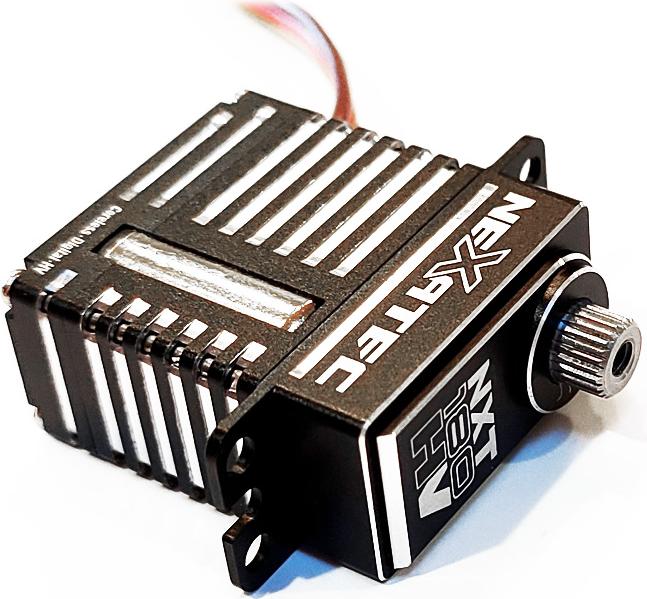

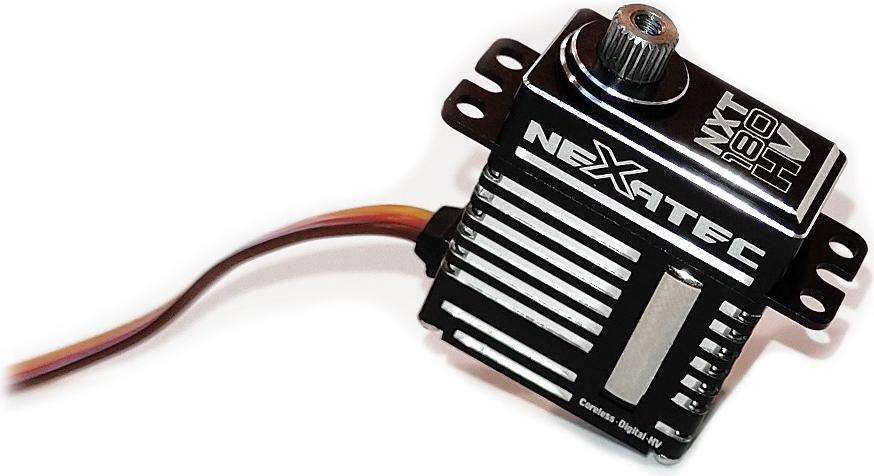

Nexatec NXT 180HV Digital Metal Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... PRECISION AEROBATICS
All items from... PRECISION AEROBATICS
But only from... PRECISION AEROBATICS
All items from... PRECISION AEROBATICS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
23 mm
Length:
12
Width:
19 mm
Height:
20.5 g
Weight:
8.1 kg-cm (112.5 oz-in)
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
10 kg-cm (138.9 oz-in)
Torque @ 7.4V:
0.081 sec/60°
Speed @ 7.4V:
10.8 kg-cm (151 oz-in)
Torque @ 8.4V:
0.071 sec/60°
Speed @ 8.4V:
FEATURES
- Highest torque in class
- Full aluminum CNC machined case
- Hyper cooling ridges
- Digital
- High Voltage
- High speed
- High precision
- High performance coreless motor
- Heavy duty Fully metal geared
- Dual ball bearing
- Super smooth and quiet
click image to enlarge

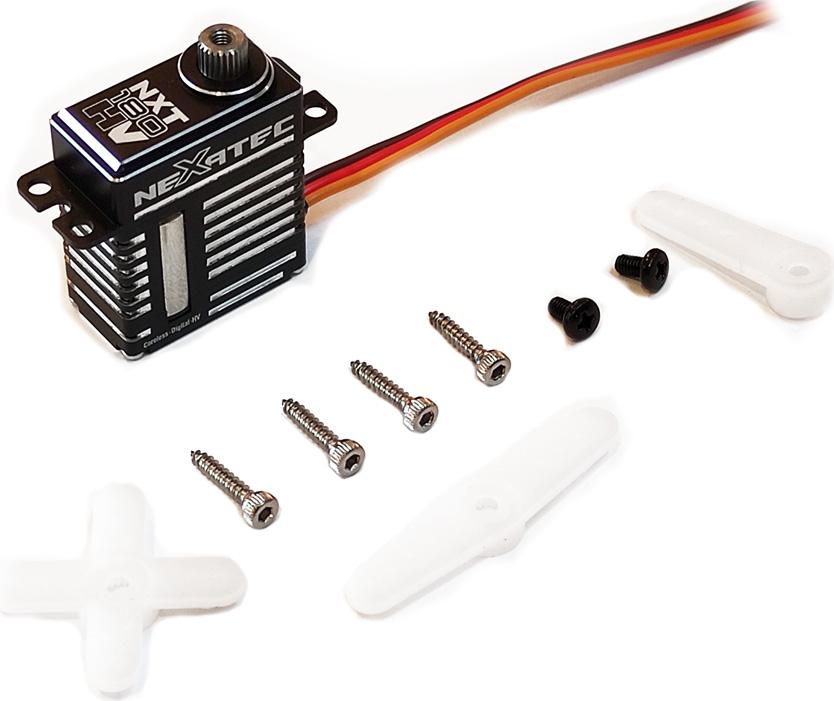

ADDITIONAL PHOTOS
|
|
