PREAC1980

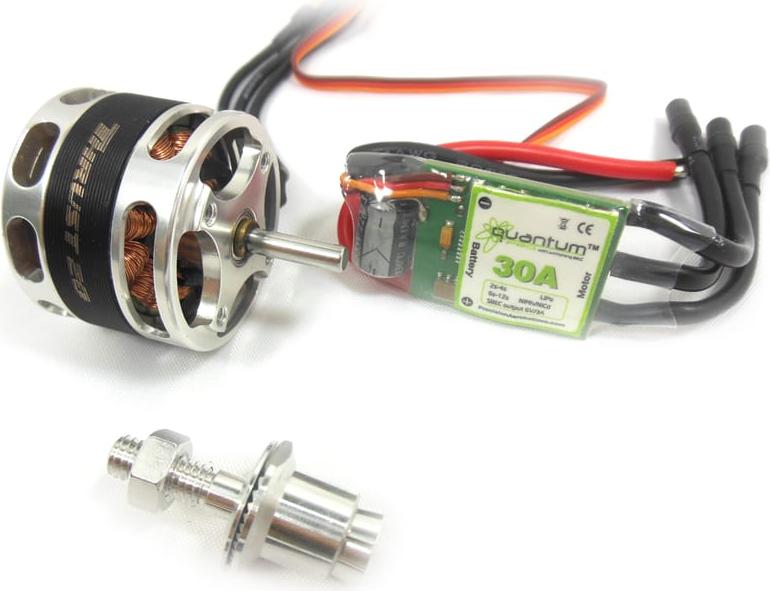

T20 Power System - Thrust 20/Quantum 30A/Prop Adapter

Product Info
PRECISION AEROBATICS

PREAC1980
T20 Power System - Thrust 20/Quantum 30A/Prop Adapter
By PRECISION AEROBATICS
$169.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motor Systems
But only from... PRECISION AEROBATICS
All items from... PRECISION AEROBATICS


 Inventory Status Legend
StockStock availability for on-line ordering
0
$169.99
Warehouse ?
StockStock availability for pick up
0
$169.99
Warehouse ?
0
$169.99
Store - Stratford ?
0
$169.99
Store - Edmonton ?
0
$169.99
Store - Mississauga ?
0
$169.99
Store - Ottawa ?
0
$169.99
Store - Oshawa ?
0
$169.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES
  • Thrust® 20 Motor with RotorKool® technology
  • Quantum brushless ESC 30A
  • Pre-soldered bullet connectors
  • CNC Machined Precision Aerobatics prop adapter (made for PA in Germany)

Thrust Motor

Thrust® motor is one of the coolest running high performance, high-torque and high efficiency brushless motor ever produced to date. The design incorporates our latest innovation, RotorKool® which keeps the stator core material, the low resistance windings, highly permeable stator plates, high quality NMB Japan triple bearings and powerful neodymium magnets at optimum operating temperatures regardless of duration or the number of consecutive flights made*.

Weight: 71.gr
Shaft diameter: 4.0mm
KV rating: 1030kv
Recommended ESC PA: Quantum 30A
Recommended Prop size: VOX 11x5, APC 10x5E, 11x3.8SF, 11x5.5E

Quantum ESC
The PA Quantum 30 is a performance enhanced Brushless Electronic Speed Controller specifically designed to seamlessly match our Thrust 20®

The PA Quantum ESC’s has 4 high power regulator chips BEC. This BEC specifically designed for extreme aerobatics and therefore has the capability to support the higher momentary peak demand loads to eliminate the possibility of unwanted shutdowns. This high power BEC is also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters. This is especially important when using a 2.4GHz receiver.

CNC machined propeller adapter
It may seem like a minor component installed in your high performance aircraft. However we find it extremely important since the prop adapter affect the final thrust and performance of your motor. Most prop adapters on the market are off center creating excessive variations which lead to glue joint in motor-box to come loose. In high end RPM they cause the motor excessive heat thus reduce efficiently and power.

We tried many different brands with no success (mainly inconsistent quality and inaccuracy), so we decided to produce these adapters in Germany from the highest grade materials and machining. The adapter is CAD designed by Precision Aerobatics and is made for us in Germany


Quantum ESC Specs:

Continuous current: 30A
Burst Current (<10s): 35A
Switching BEC Output (continuous/burst): 5.6V/3A (continuous) 3.8A (burst)
LiPo: 2-4 Cells
NiMh/NiCd: 6-12 Cells
