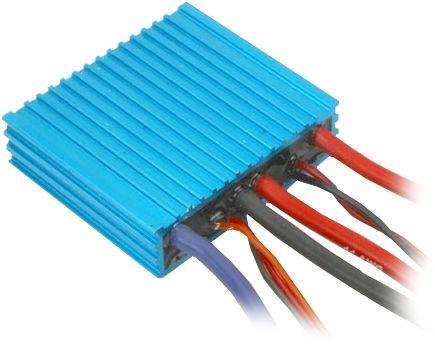

ESC Waterproof w/Reverse
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Electronic Speed Controls (ESC)
But only from... PRO BOATS
All items from... PRO BOATS
But only from... PRO BOATS
All items from... PRO BOATS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
4.8-12 v
Input Voltage:
40 A
Continuous Current:
Yes
Reverse:
Yes
Forward:
Tamiya
Input Connector:
Bullet
Output Connector:
15 turns
Motor Limit:
47 mm
Length:
42 mm
Width:
13 mm
Height:
89 g
Weight:
6.0V 1A max
BEC Voltage:
1000 Hz
PWM Frequency:
0.070 ohms
Full On Resistance:
FEATURES
- Reverse operation for more maneuverability
- Completely sealed to operate even when wet
- Automatic setup - no programming required
- Anodized aluminum case
Pro Boat’s waterproof marine electronic speed control is definitely one of the best new values in model boating. Anyone can upgrade their RTR boat from a mechanical speed control to the precision of a fully proportional ESC with reverse.
The unit’s completely potted electronics are sealed in epoxy and encased in a blue anodized aluminum shell that keeps operating temps cool. In addition to being inexpensive and waterproof, no programming is required. Set up is as simple as turning on the transmitter, turning on the receiver and moving the throttle to full forward, then full reverse. The speed control automatically memorizes the initial movements and provides proportional control between the extremes.
