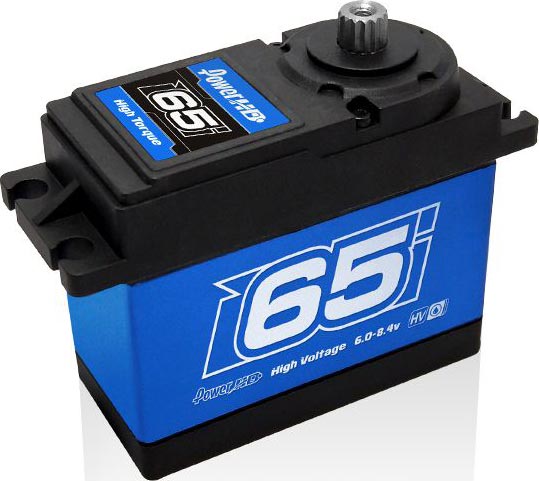

WH-65KG Waterproof Servo 65KG 0.15Sec@8.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing:
65.8 mm
Length:
30 mm
Width:
55.6 mm
Height:
200 g
Weight:

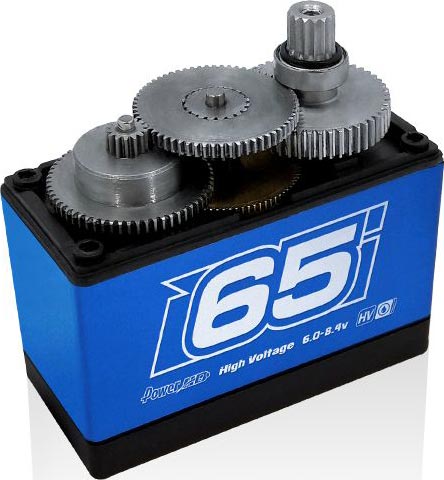

Copper & Steel
Geartrain:
6.0 ~ 8.4 v
Voltage Range:
55 kg-cm (764 oz-in)
Torque @ 6.0V:
0.19 sec/60°
Speed @ 6.0V:
60 kg-cm (833.2 oz-in)
Torque @ 7.4V:
0.17 sec/60°
Speed @ 7.4V:
65 kg-cm (903 oz-in)
Torque @ 8.4V:
0.15 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
