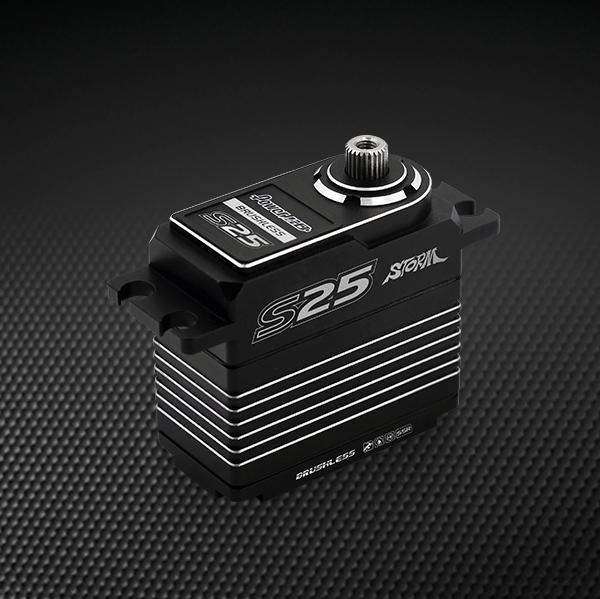

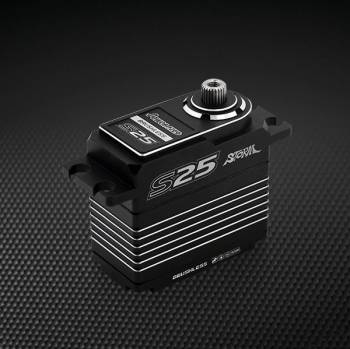

PowerHD Storm S25 HV Brushless Digital Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
High Voltage
Type:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.7 mm
Length:
20.5 mm
Width:
38.6 mm
Height:
75 g
Weight:
Titanium & Steel
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
21.5 kg-cm (299 oz-in)
Torque @ 6.0V:
0.075 sec/60°
Speed @ 6.0V:
25 kg-cm (347.18 oz-in)
Torque @ 7.4V:
0.060 sec/60°
Speed @ 7.4V:
30 kg-cm (417 oz-in)
Torque @ 8.4V:
0.055 sec/60°
Speed @ 8.4V:
