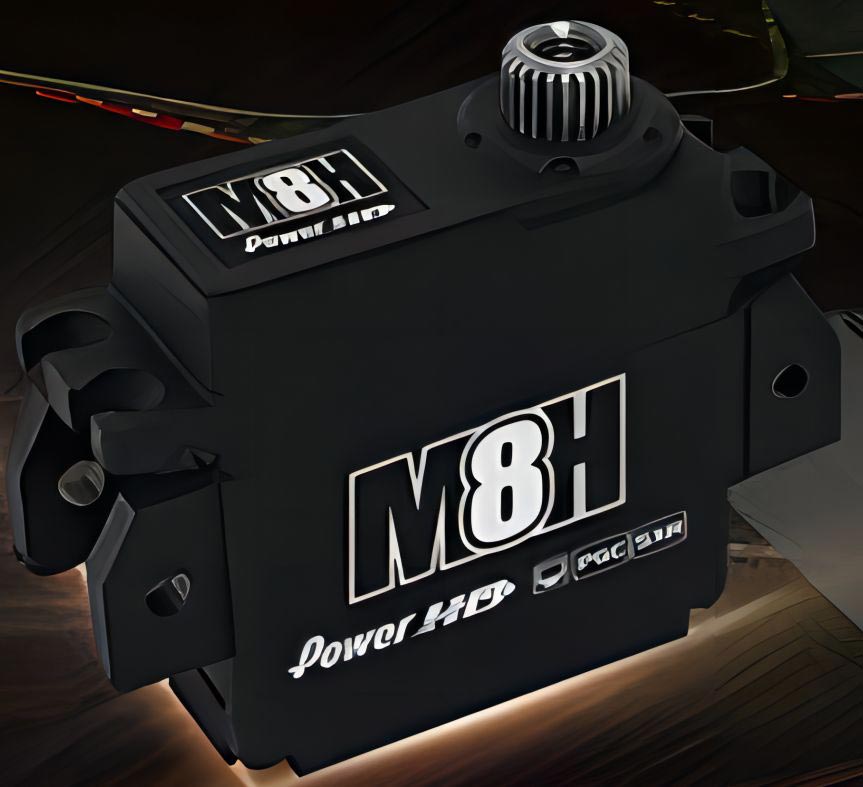

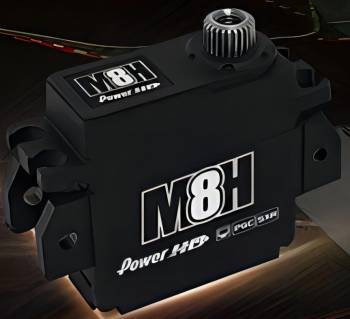

M8H Low Profile HV 1/12 Pan Car Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Pan Car
Application:
Dual Bearing
Bearing:
25 Tooth
Output Spline:
27.2 mm
Length:
12.1 mm
Width:
28.2 mm
Height:
18 g
Weight:
Coreless
Motor Type:
4.8 - 8.4 v
Voltage Range:
4.5 kg-cm (62.5 oz-in)
Torque @ 4.8V:
0.11 sec/60°
Speed @ 4.8V:
6.3 kg-cm (87.5 oz-in)
Torque @ 6.0V:
0.085 sec/60°
Speed @ 6.0V:
7.5 kg-cm (104.2 oz-in)
Torque @ 7.4V:
0.073 sec/60°
Speed @ 7.4V:
8.5 kg-cm (118 oz-in)
Torque @ 8.4V:
0.065 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
