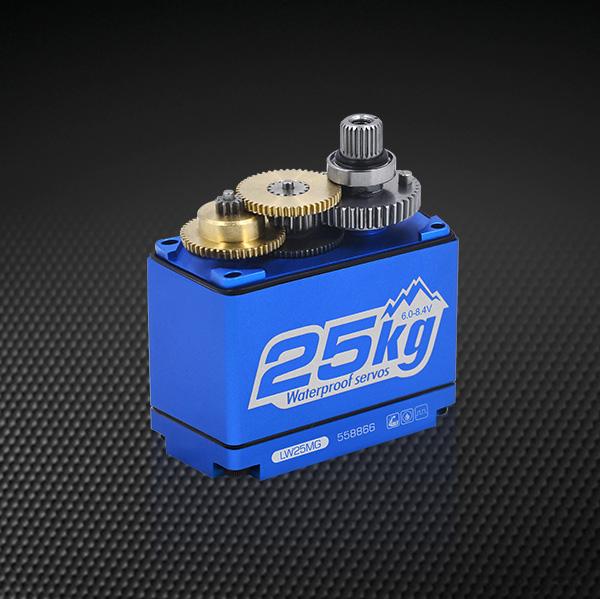

Power HD Digital Waterproof Servo 319oz-in 25kg/cm 0.14sec @7.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Crawler, Monster Truck, Buggy
Application:
Standard
Connector Type:
Bearing
Bearing/Bushing:
Two
Bearing:
40.7 mm
Length:
20.5 mm
Width:
38.6 mm
Height:
72 g
Weight:
Metal
Geartrain:
6.0 - 8.4 v
Voltage Range:
23 kg-cm (319 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
24.8 kg-cm (345.2 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
FEATURES
Power HD has introduced their budget-friendly waterproof HV servo LW-25MG. It makes use of a CNC-machined alloy case for improved durability, new wiring outlet structure for better water resistance and a long 36CM servo lead for vehicles like the Traxxas TRX-4. Additionally, due to distributor warranty policy, Power HD servos are considered "deal direct", where customers will have to contact the manufacturer directly to request help with warranty repairs and replacements.
Compatible with 6.0V to 8.4V input, and offers torque of up to 25kg-cm at a speed of down to 0.14s.
click image to enlarge

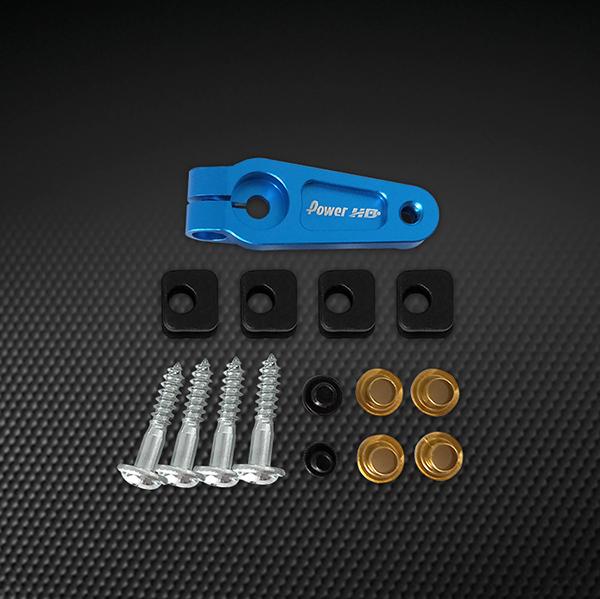

ADDITIONAL PHOTOS
|
|
