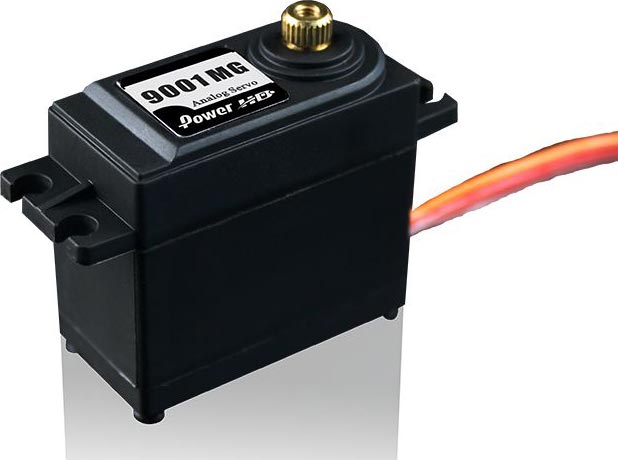

HD-9001MG Analog Servo 9.8KG 0.14Sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing:
40.7 mm
Length:
20.5 mm
Width:
39.5 mm
Height:
56 g
Weight:
Copper
Geartrain:
4.8 ~ 6.0 v
Voltage Range:
8.6 kg-cm (119.4 oz-in)
Torque @ 4.8V:
0.16 sec/60°
Speed @ 4.8V:
9.8 kg-cm (136.1 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
25 Tooth
Output Spline:
click image to enlarge

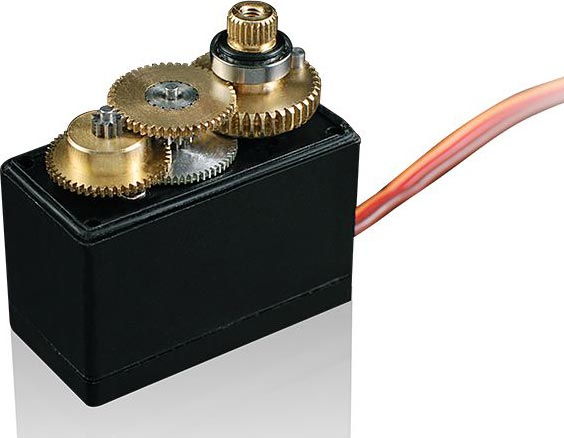

ADDITIONAL PHOTOS
|
A693957020095 A693957020095
PHDHD-9001MG
