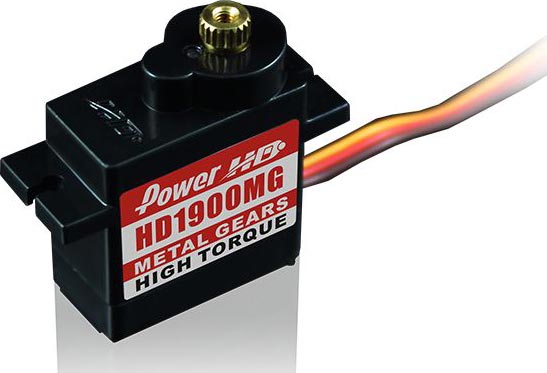

HD-1900MG Analog Servo 1.5KG 0.08Sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Bushing
Bearing/Bushing:
23 mm
Length:
12.2 mm
Width:
27.5 mm
Height:
14 g
Weight:
Copper
Geartrain:
4.8 - 6.0
Voltage Range:
1.2 kg-cm (16.7 oz-in)
Torque @ 4.8V:
0.11 sec/60°
Speed @ 4.8V:
1.5 kg-cm (21 oz-in)
Torque @ 6.0V:
0.08 sec/60°
Speed @ 6.0V:
6939570720275 6939570720275
PHDHD-1900MG
