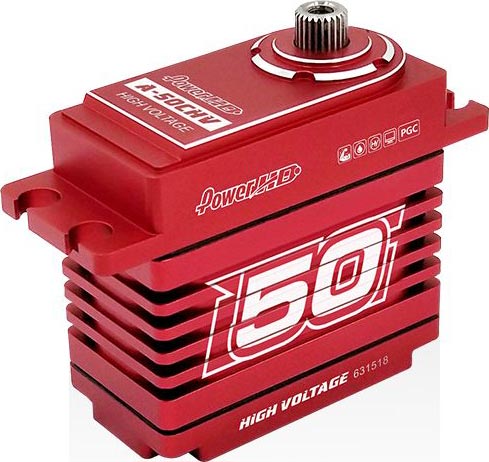

A-50CHV Digital Aircraft Servo 50KG 0.16Sec@8.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|

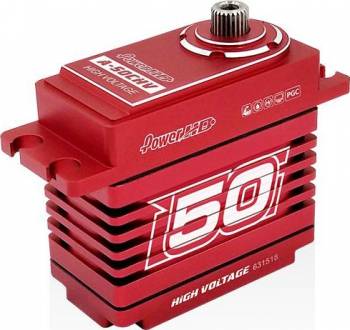

click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
54 mm
Length:
21 mm
Width:
39 mm
Height:
80 g
Weight:
Steel & Aluminum
Geartrain:
6.0 - 8.4 v
Voltage Range:
35 kg-cm (486.1 oz-in)
Torque @ 6.0V:
0.19 sec/60°
Speed @ 6.0V:
45 kg-cm (625 oz-in)
Torque @ 7.4V:
0.17 sec/60°
Speed @ 7.4V:
click image to enlarge

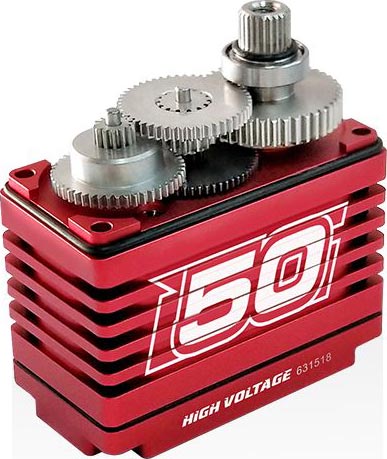

ADDITIONAL PHOTOS
|
PHDA-50CHV
