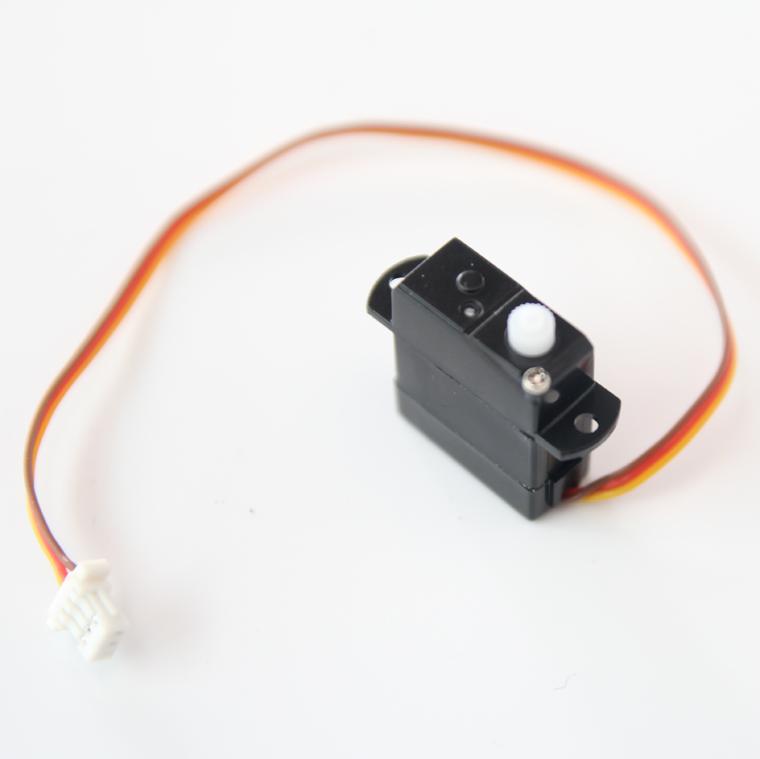

1.7g Low Voltage Micro Digital Servo w/1.0 JST Connector
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
1.0mm Mini JST
Connector Type:
bushing
Bearing/Bushing:
13.5 mm
Length:
6.2 mm
Width:
16 mm
Height:

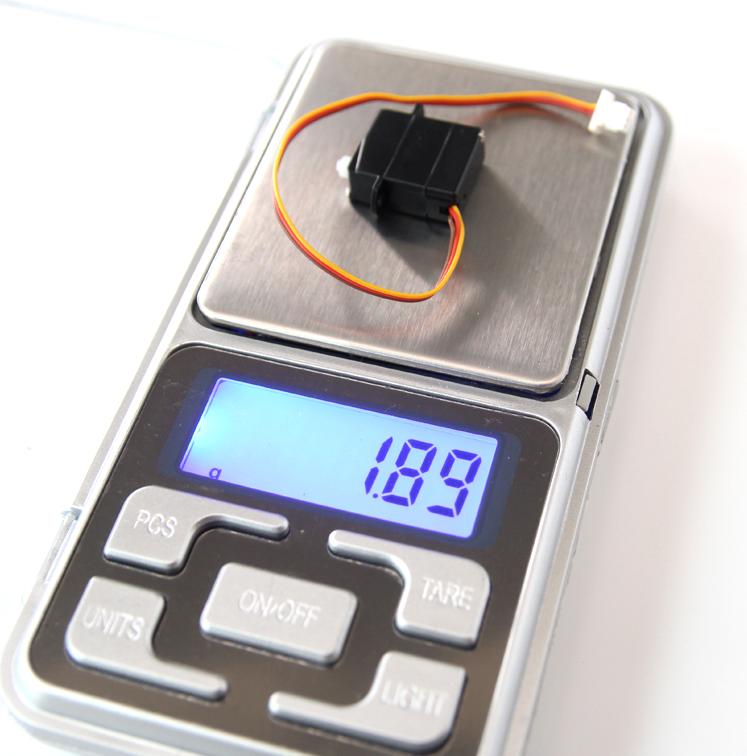

1.7 g
Weight:
Plastic
Geartrain:
Coreless
Motor Type:
3.7 - 5.0 v
Voltage Range:
0.065 kg-cm (0.90 oz-in)
Torque @ 3.7V:
0.07 sec/60°
Speed @ 3.7V:
0.075 kg-cm (1.04 oz-in)
Torque @ 4.2V:
0.05 sec/60°
Speed @ 4.2V:
click image to enlarge

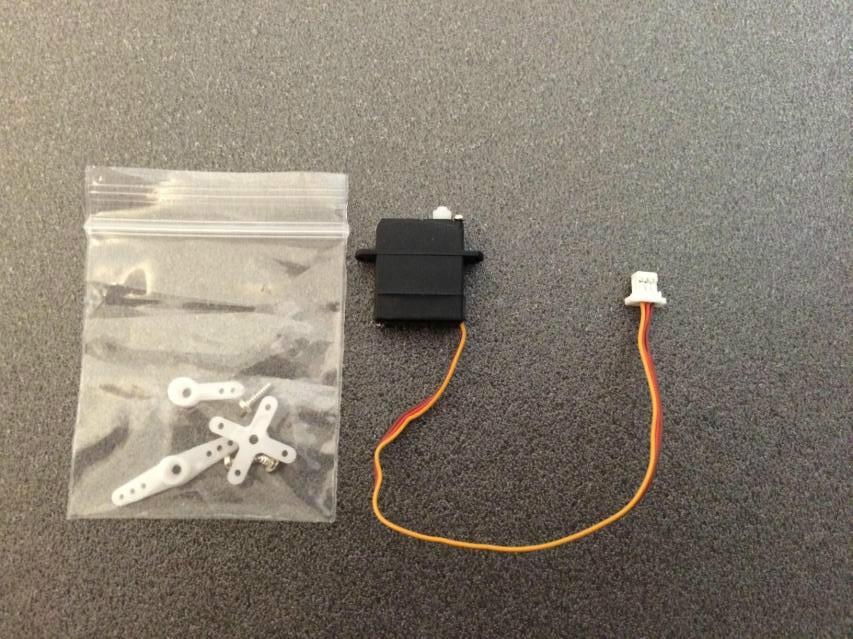

ADDITIONAL PHOTOS
|
|
