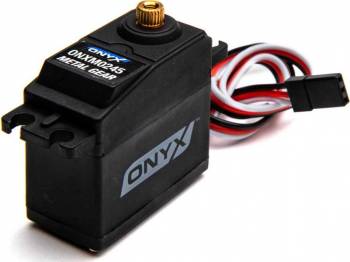

S45 Standard Metal Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
Special Blue Dot Clearance
Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
High Torque
Type:
Universal Servo
Connector Type:
Bearing
Bearing/Bushing:
Dual
Bearing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
51 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
10.3 kg-cm (143 oz-in)
Torque @ 4.8V:
0.21 sec/60°
Speed @ 4.8V:
10.8 kg-cm (151 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
FEATURES

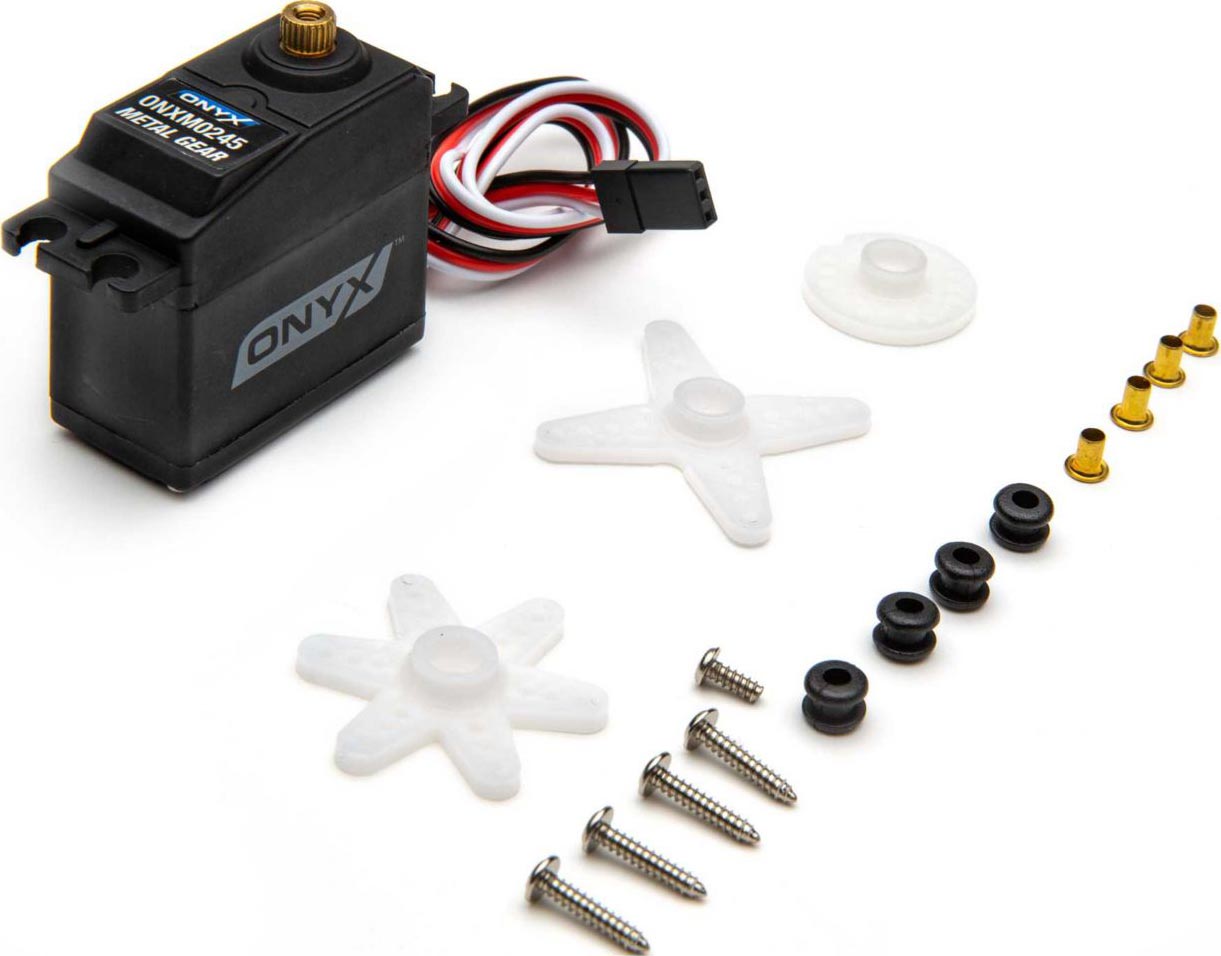

Expertly engineered Onyx servos deliver the speed, torque and precision needed for optimal results in a wide variety of applications. Onyx servo options allow you to match your needs to the letter. Select from analog or digital styles, plastic or metal gears, and options with ball bearings and coreless motors. Onyx servos are solid buys in long-lasting performance and a pleasant surprise in value. Onyx servos are a simple way to enjoy savings without sacrificing performance. All Onyx servos are protected by a 1-year limited warranty. All also include a universal connector and mounting hardware.
