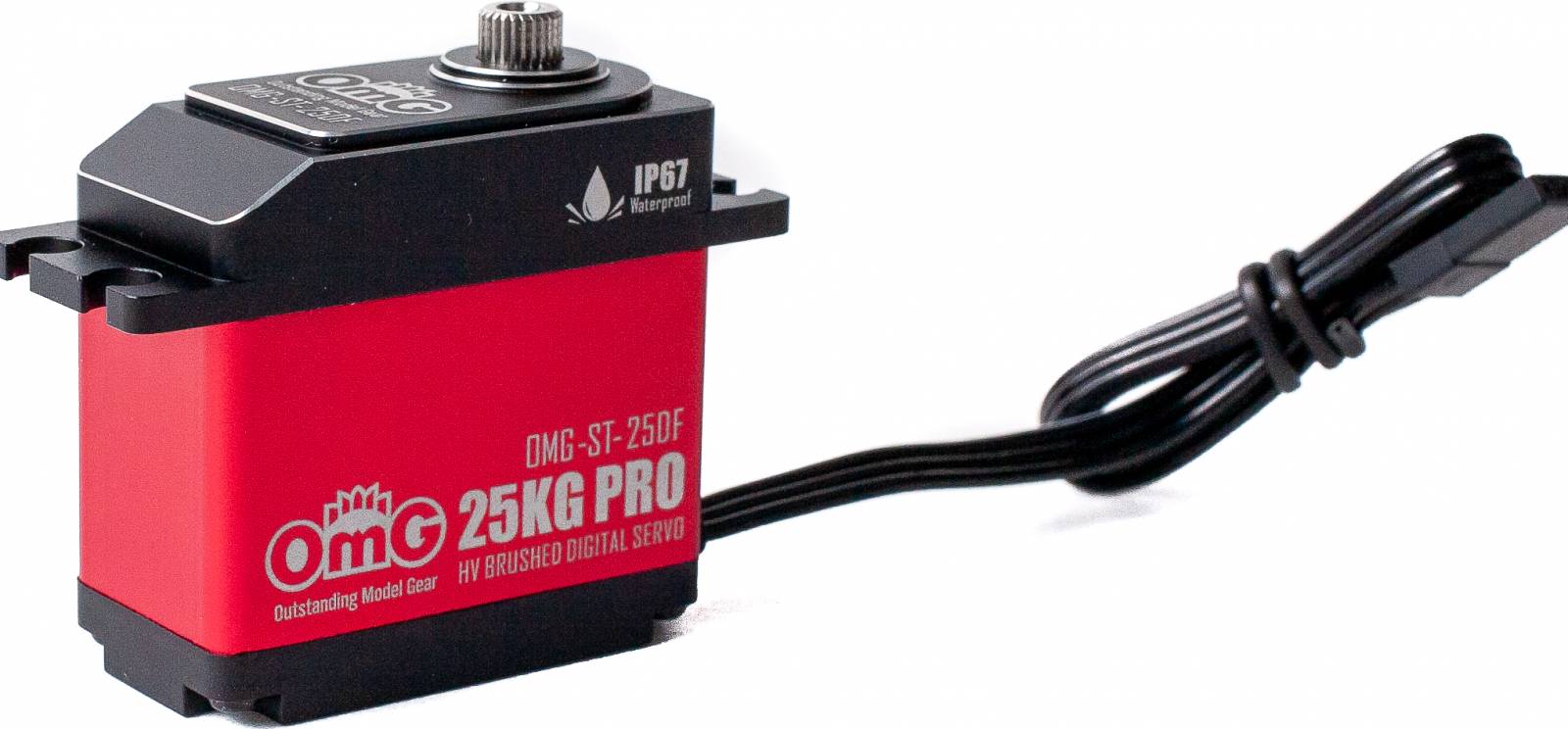

Servo Digital Brushed Standard SSG WP 25KG Pro Red
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
1/10 Crawler
Application:
25 Tooth
Output Spline:
40.7 mm
Length:
20.5 mm
Width:
39.6 mm
Height:
71 g
Weight:
4.8 - 8.4 V
Voltage Range:
21.5 kg-cm (299 oz-in)
Torque @ 4.8V:
0.148 sec/60°
Speed @ 4.8V:
26 kg-cm (361 oz-in)
Torque @ 7.4V:
0.127 sec/60°
Speed @ 7.4V:
30 kg-cm (417 oz-in)
Torque @ 8.4V:
0.112 sec/60°
Speed @ 8.4V:
FEATURES
Specially designed for 1:10 RC crawlers, standard profile, full metal, high voltage servo, top & middle cover in full metal, CNC precise engraving, bottom cover in plastic, metal gear, waterproof.
click image to enlarge

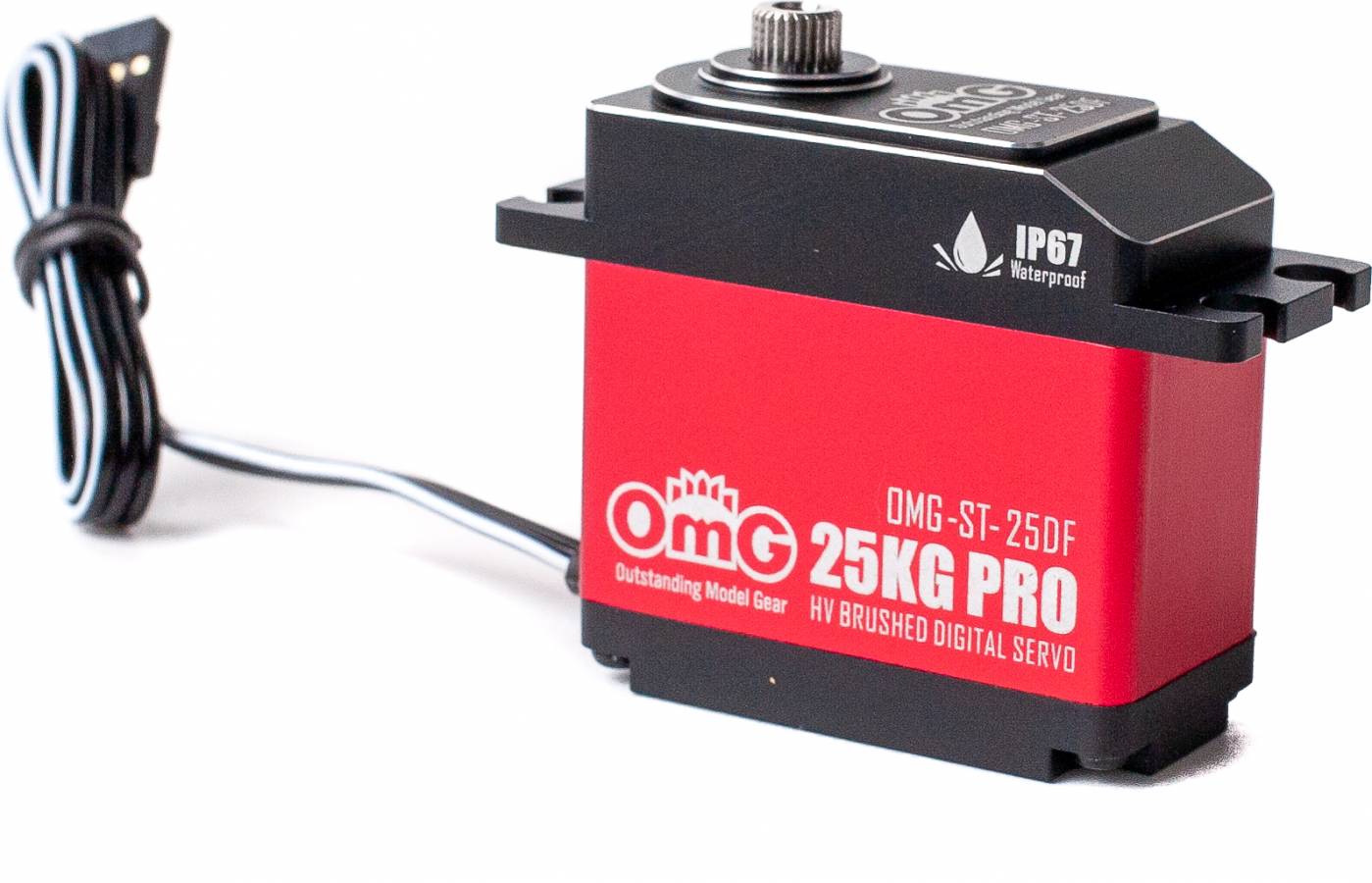

ADDITIONAL PHOTOS
|
974405577705 0974405577705
OMG-ST-25DF
