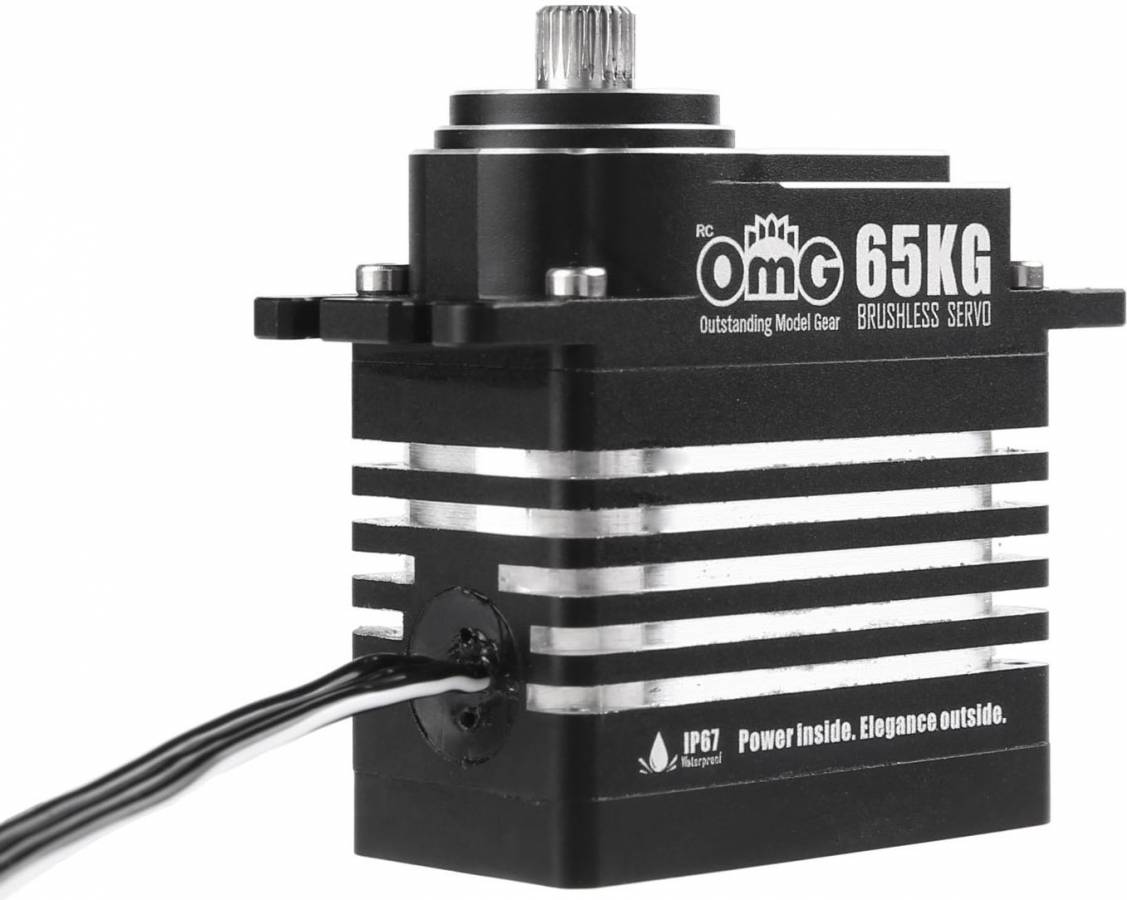

Servo Digital BL Standard SSG WP 65KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
1/8th or 1/10th Truck
Application:
25 Tooth
Output Spline:
40.3 mm
Length:
21 mm
Width:
42 mm
Height:
60 kg-cm (833 oz-in)
Torque @ 7.4V:
0.085 sec/60°
Speed @ 7.4V:
65 kg-cm (903 oz-in)
Torque @ 8.4V:
0.095 sec/60°
Speed @ 8.4V:
FEATURES
Standard size full metal waterproof IP67 brushless digital servo, inlaid with six ball bearings to prevent gear movement, better impact resisting with 2.5mm main axis and 2.0mm secondary axis.
Fit for 1:8 &1:10 RC Vehicle, RC Boat and RC Planes.
click image to enlarge

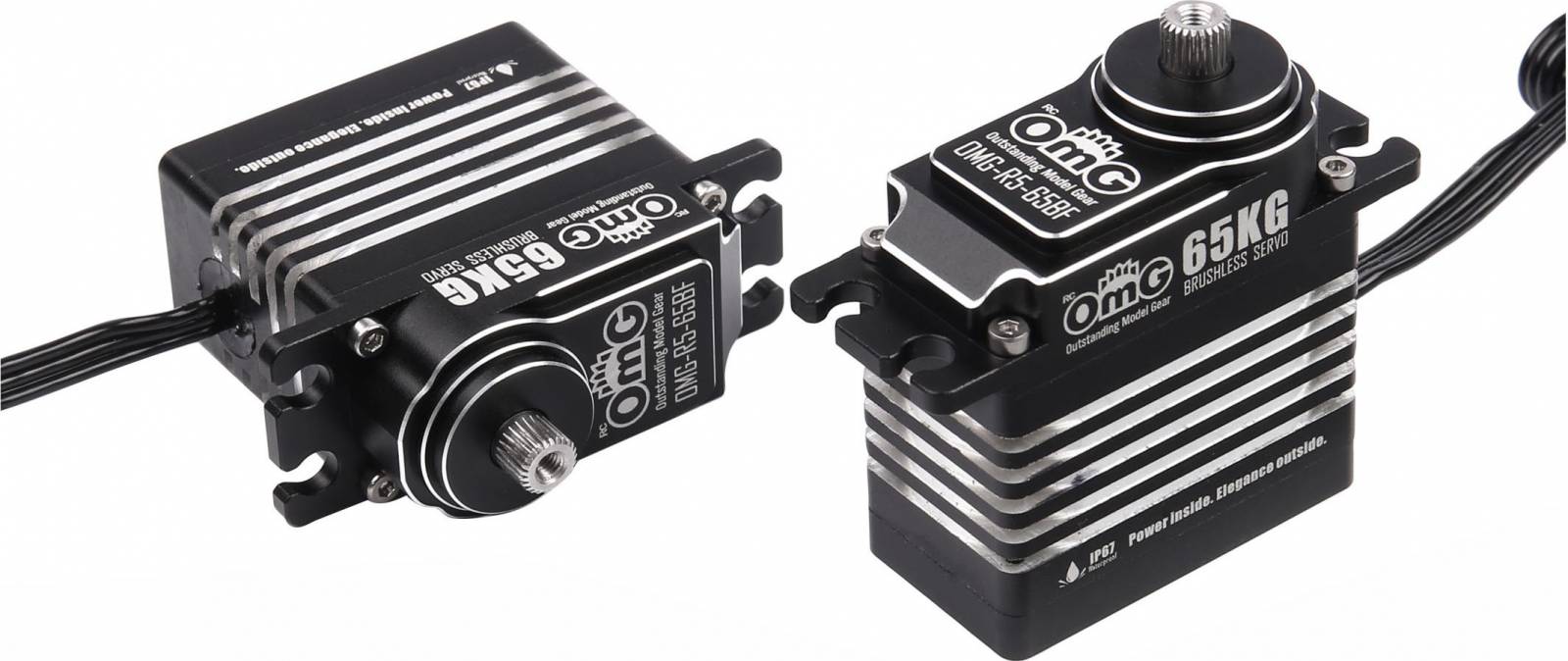

ADDITIONAL PHOTOS
|
OMG-R5-65BF/BK
