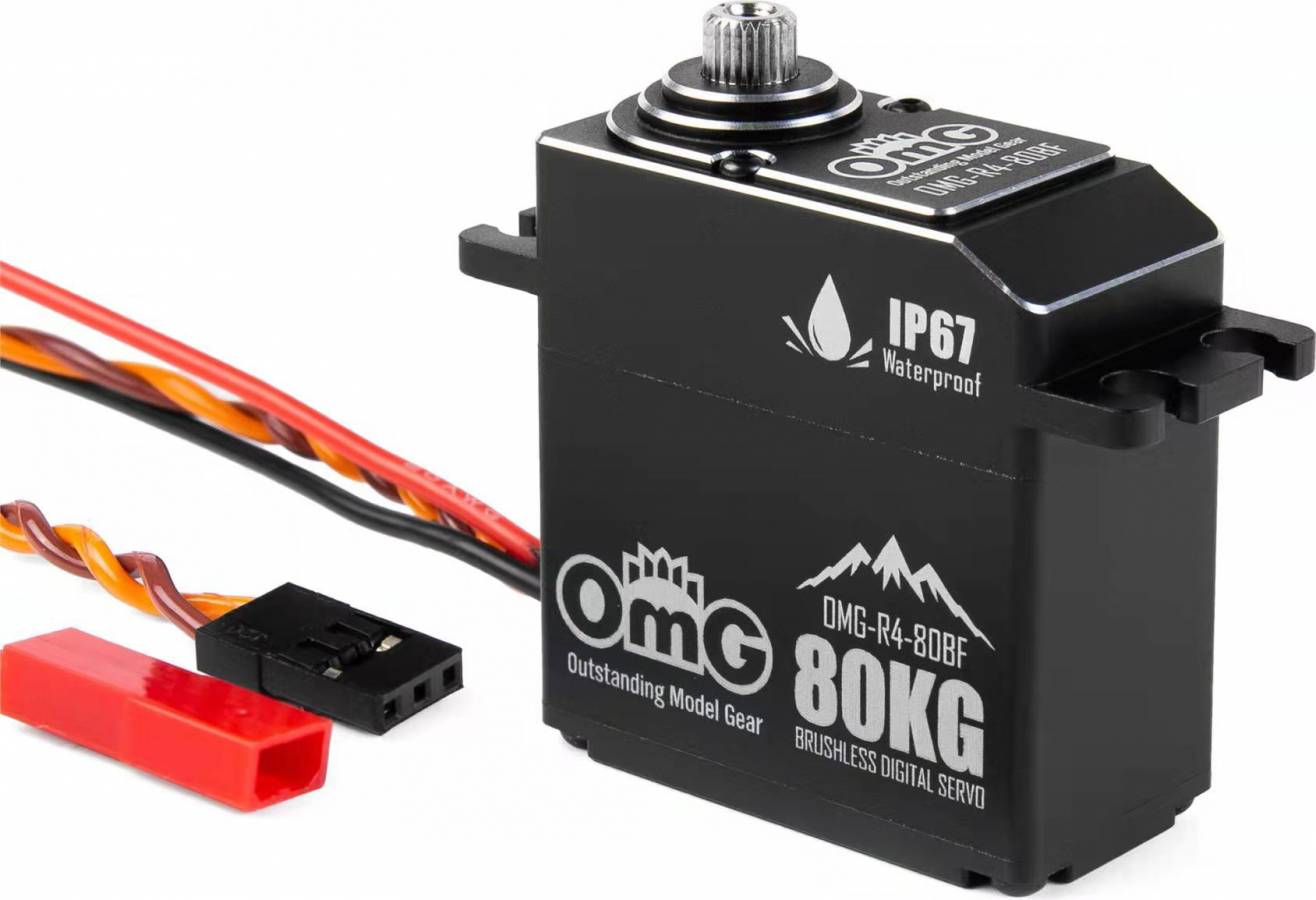

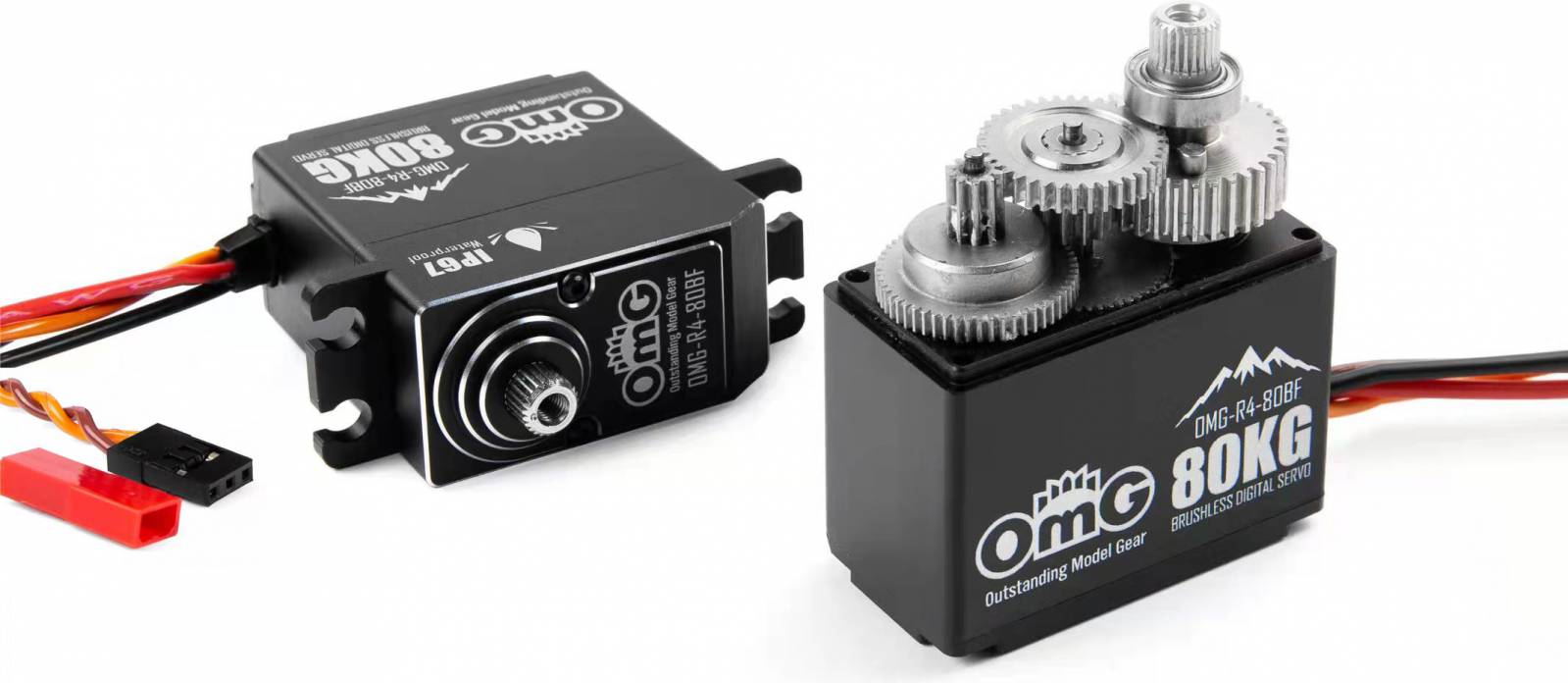

Servo Digital BL Standard SSG WP 80KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
1/8 Car or Large Plane
Application:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
42.5 mm
Height:
97 g
Weight:
6.0 - 11.1 v
Voltage Range:
47 kg-cm (653 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
56 kg-cm (778 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
72 kg-cm (1000 oz-in)
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
81 kg-cm (1125 oz-in)
Torque @ 11.1V:
0.10 sec/60°
Speed @ 11.1V:
FEATURES
Specially designed for 1:8 RC vehicles and above 60CC large plane. Standard profile, full metal, brushless motor, high voltage servo, full body in CNC, steel gear, waterproof IP67.
