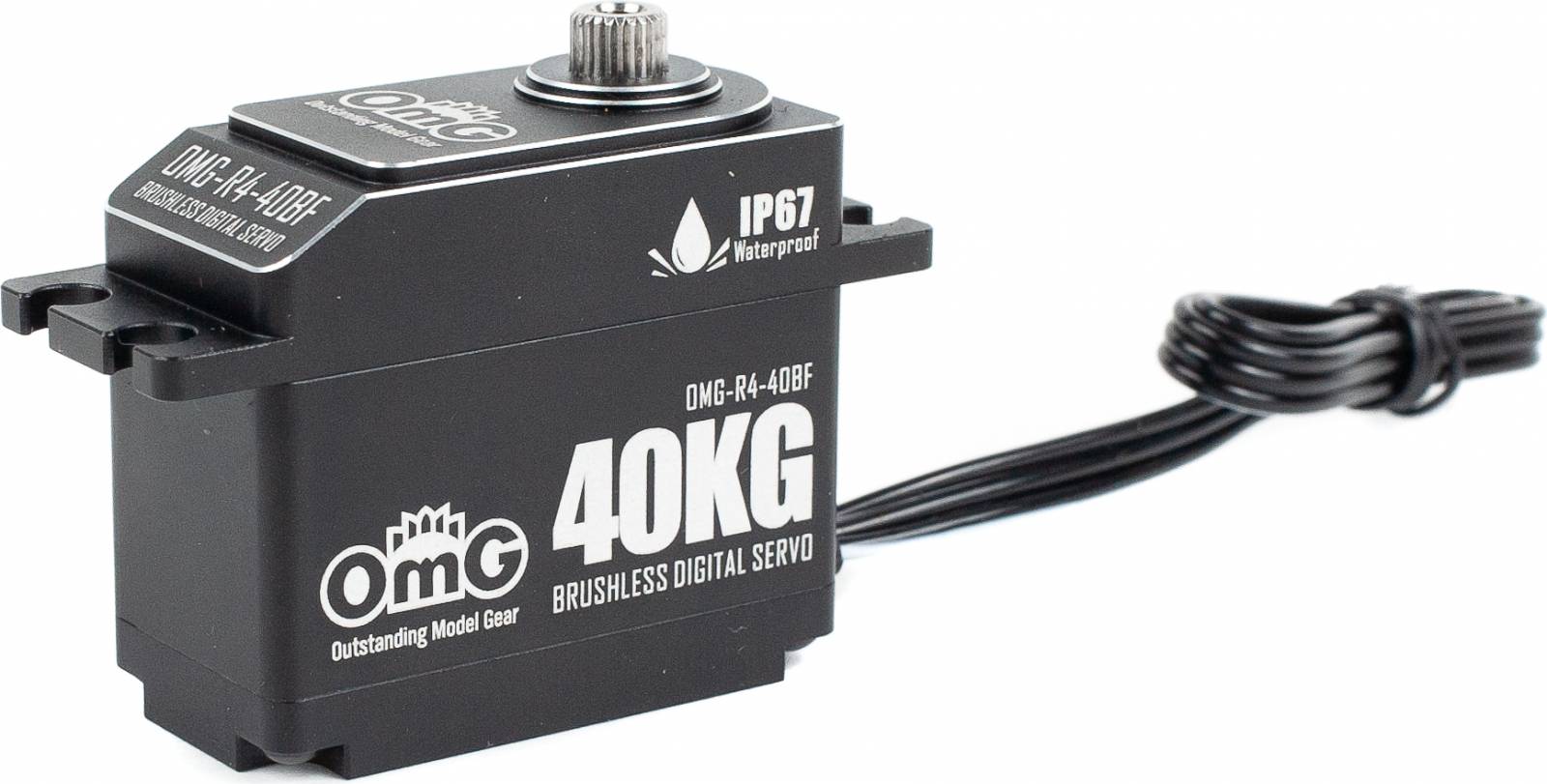

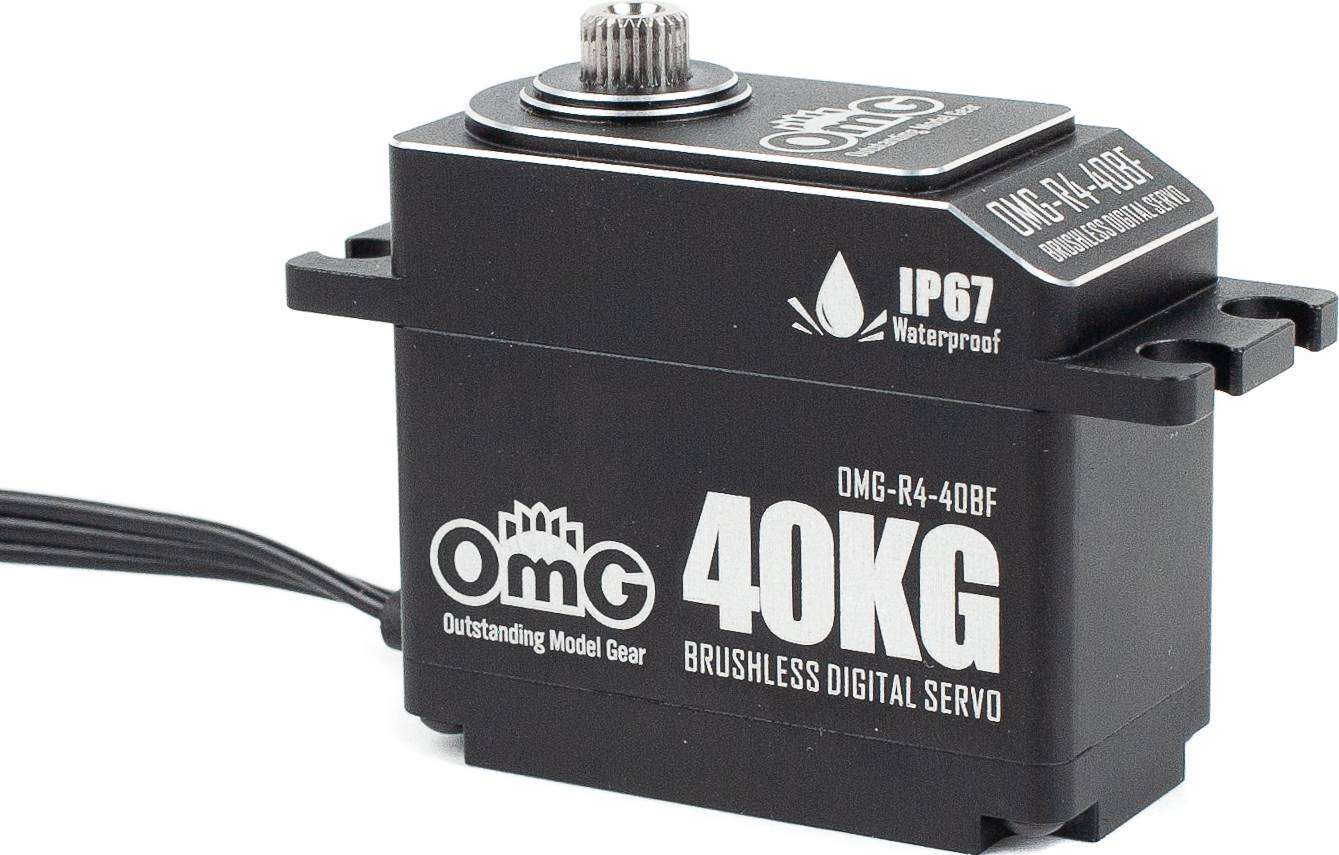

Servo Digital BL Standard SSG WP 40KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
1/8 Car
Application:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
36 mm
Height:
77 g
Weight:
Stainless Steel
Geartrain:
7.4 - 8.4 v
Voltage Range:
38 kg-cm (528 oz-in)
Torque @ 7.4V:
0.078 sec/60°
Speed @ 7.4V:
40 kg-cm (556 oz-in)
Torque @ 8.4V:
0.065 sec/60°
Speed @ 8.4V:
FEATURES
Specially designed for 1:8 RC vehicles, standard size, full metal, brushless motor, high voltage digital servo, full case in CNC, matte cover. Full steel gear, water proof IP67.
