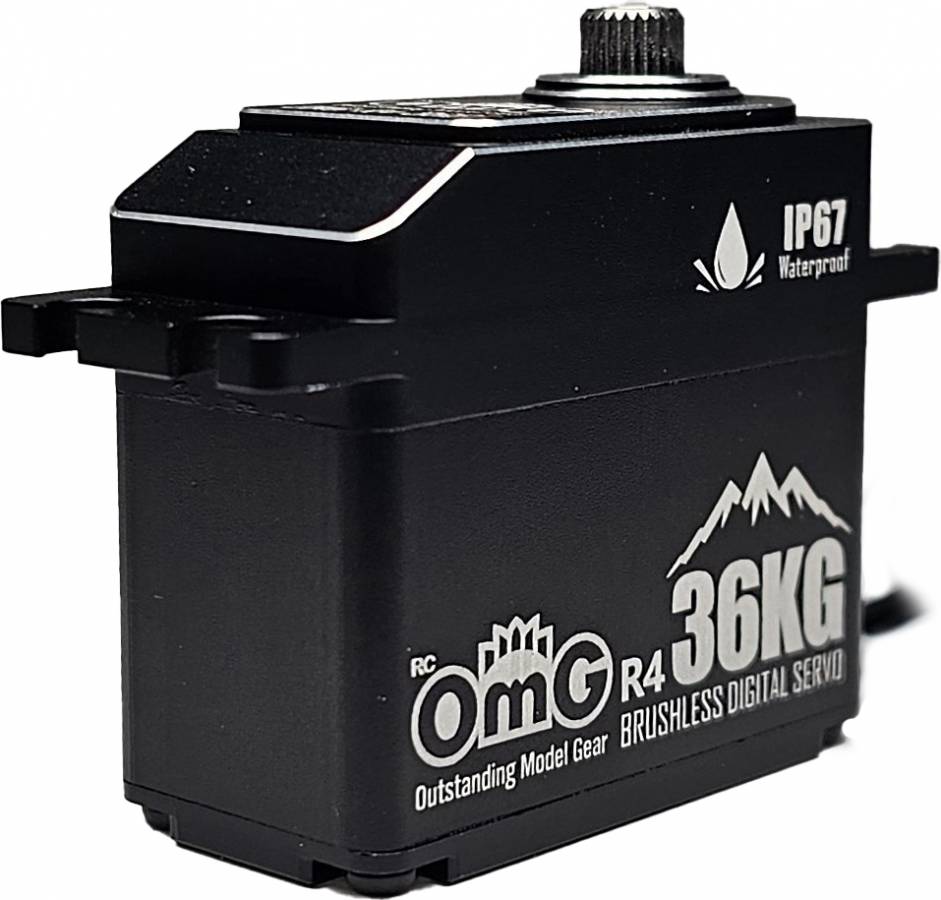

Servo Digital BL Standard SSG WP 36KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
High Voltage
Type:
1/10 & 1/8 Crawlers, 1/10 cars & trucks, 60CC+ Airplane
Application:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
77 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
7.4-8.4 v
Voltage Range:
36 kg-cm
Torque @ 7.4V:
0.078 sec/60°
Speed @ 7.4V:
37 kg-cm
Torque @ 8.4V:
0.075 sec/60°
Speed @ 8.4V:
