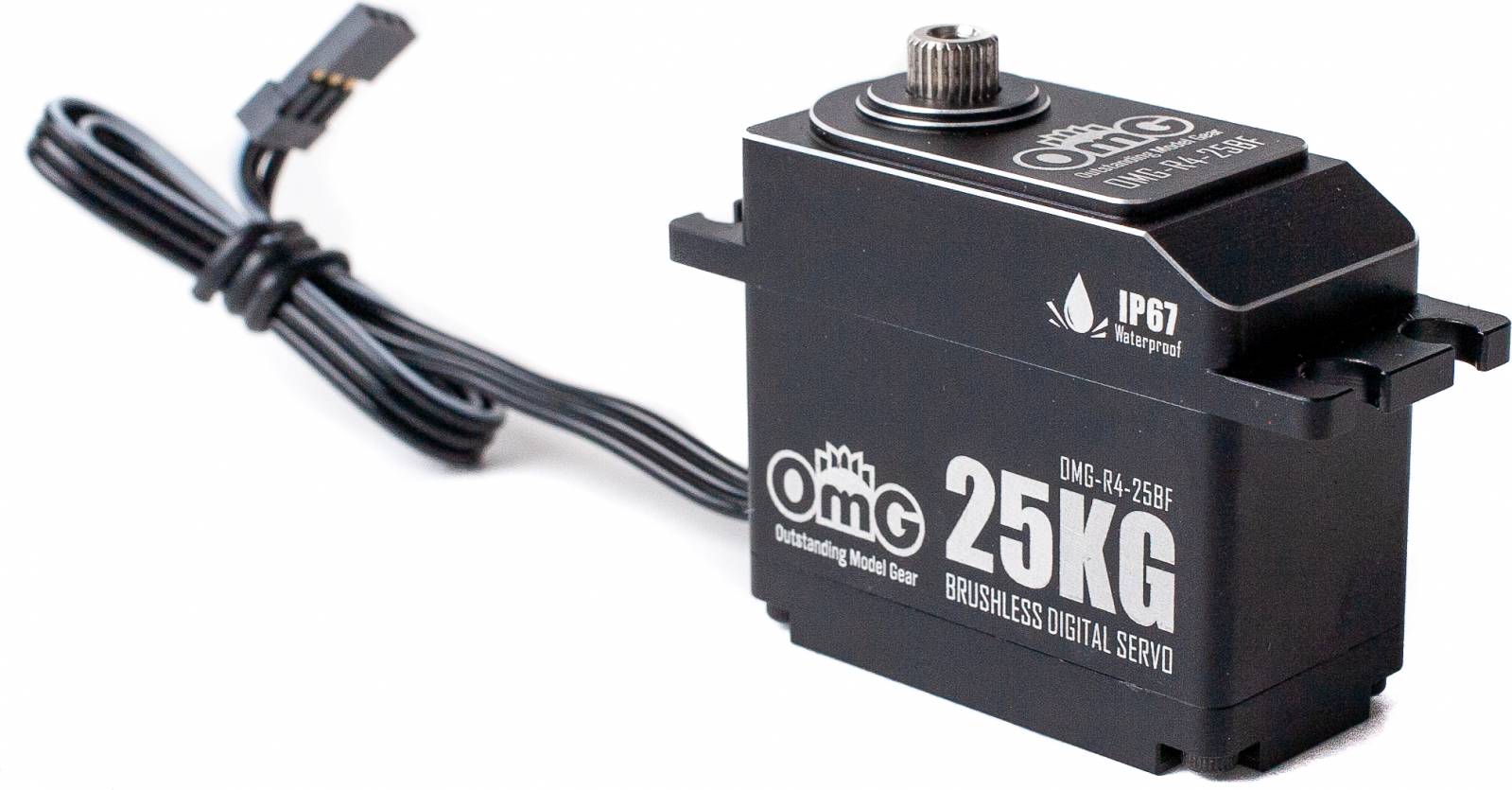

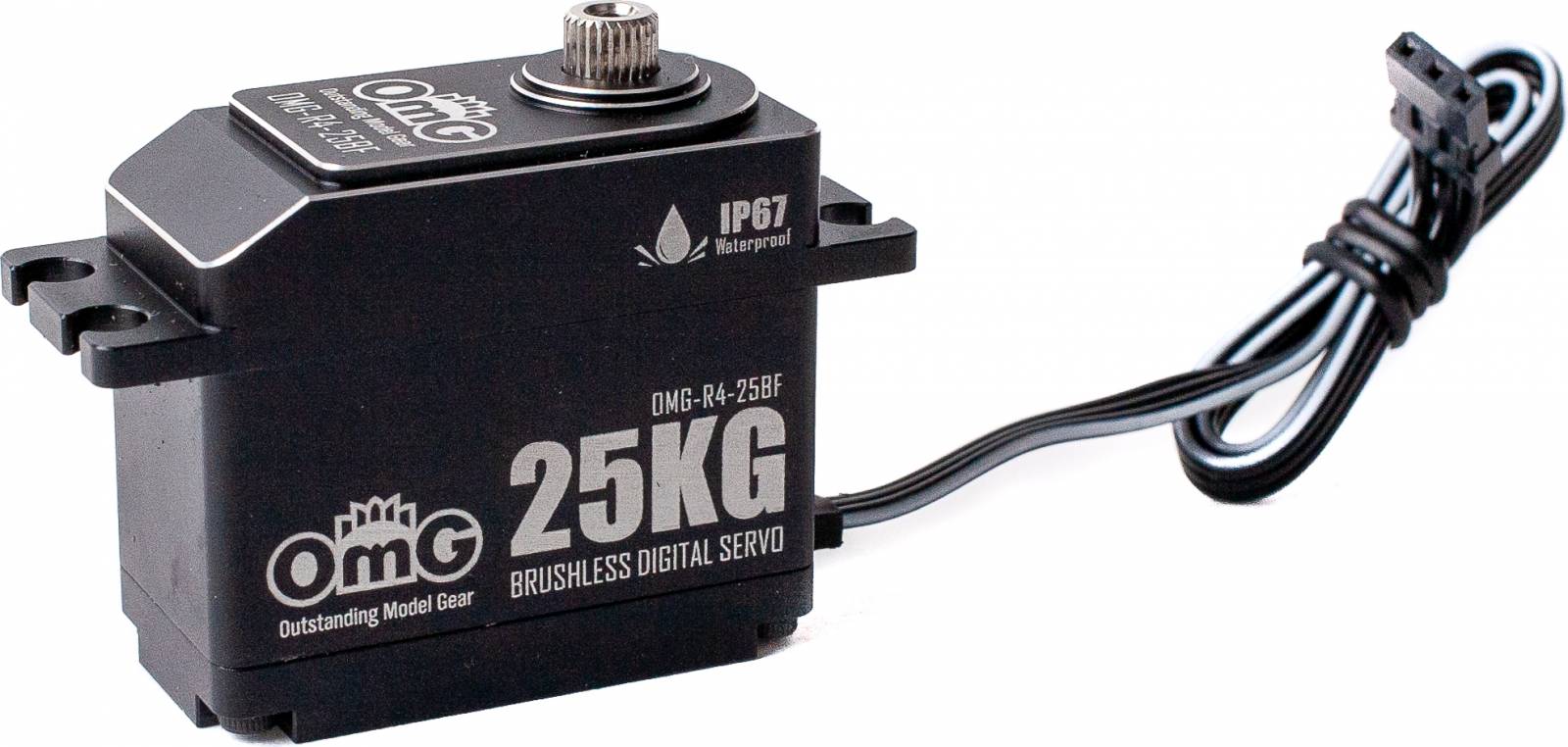

Servo Digital BL Standard SSG WP 25KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Car and Plane
Application:
25 Tooth
Output Spline:
40.7 mm
Length:
20.5 mm
Width:
35.2 mm
Height:
74 g
Weight:
Stainless Steel
Geartrain:
4.8 - 7.4 v
Voltage Range:
18.5 kg-cm (257 oz-in)
Torque @ 4.8V:
0.065 sec/60°
Speed @ 4.8V:
22 kg-cm (306 oz-in)
Torque @ 6.0V:
0.050 sec/60°
Speed @ 6.0V:
23.8 kg-cm (331 oz-in)
Torque @ 7.4V:
0.047 sec/60°
Speed @ 7.4V:
FEATURES
Specially designed for the throttle of rc cars & planes, full metal brushless motor, high voltage servo, CNC full metal cover, standard profile. Stainless steel gear, waterproof IP67, Standard servo.
click image to enlarge
ADDITIONAL PHOTOS
|
